Network adapter - PCIe 3.0 x8 - 10Gb Ethernet x 2
| Main Specifications | |
|---|---|

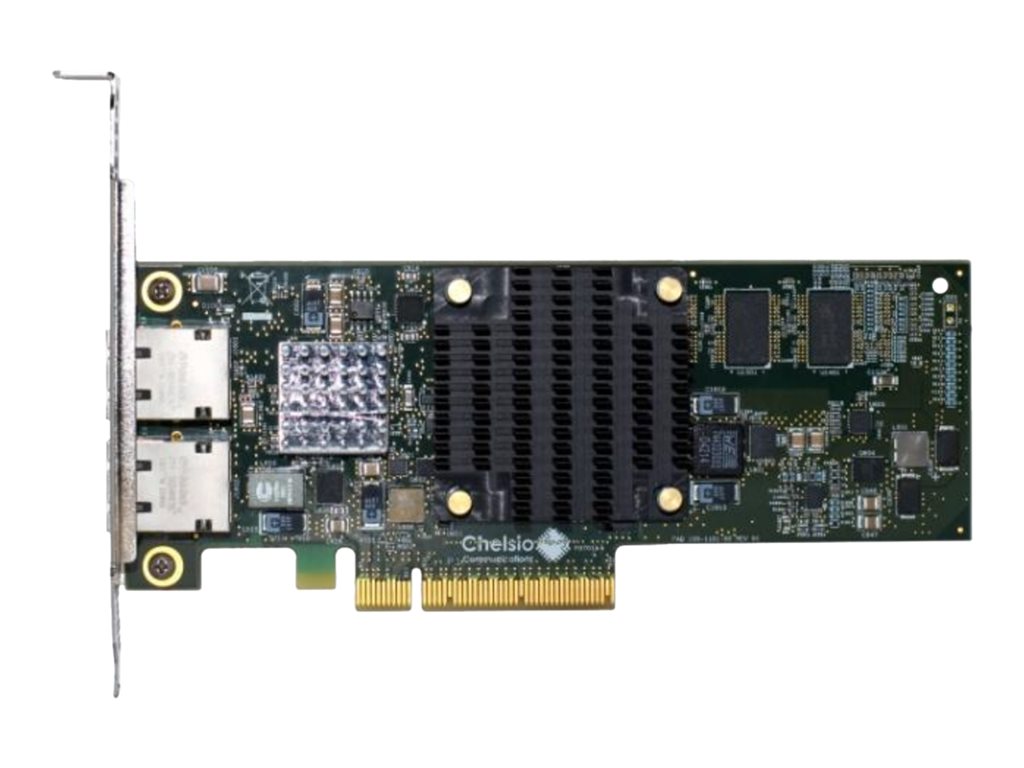

| Product Description | Chelsio T520-BT - network adapter - PCIe 3.0 x8 - 10Gb Ethernet x 2 |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 3.0 x8 |
| PCI Specification Revision | PCIe 3.0 |
| Ports | 10Gb Ethernet x 2 |
| Dimensions (WxDxH) | 6.6 in x 2.7 in |
| Cabling Type | Ethernet 10GBase-T |
| Data Link Protocol | 10 GigE, FCoE |
| Data Transfer Rate | 10 Gbps |
| Network / Transport Protocol | TCP/IP, UDP/IP, iSCSI, iWARP |
| Compliant Standards | IEEE 802.3z, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3az, IEEE 802.1Qau, IEEE 802.1Qbg |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 3.0 x8 |
| PCI Specification Revision | PCIe 3.0 |
| Expansion / Connectivity | |
| Interfaces | 2 x 10GBase-T - RJ-45 |
| Miscellaneous | |
| Compliant Standards | RoHS |
| Networking | |
| Ports | 10Gb Ethernet x 2 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10GBase-T |
| Data Link Protocol | 10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE) |
| Data Transfer Rate | 10 Gbps |
| Network / Transport Protocol | TCP/IP, UDP/IP, iSCSI, iWARP |
| Features | Flow control, firewall protection, switching, routing, NAT support, load balancing, VLAN support, IPv6 support, Quality of Service (QoS), Jumbo Frames support, RDMA support, TCP proxy, IPv4 support, Large Send Offload (LSO), Giant Send Offload (GSO), Single Root I/O Virtualization (SR-IOV), Link Aggregation Control Protocol (LACP), Data Center Bridging (DCB), Traffic Control, congestion control, TCP Segmentation Offload (TSO), tagged VLAN, Extended Message-Signaled Interrupts (MSI-X), Edge Virtual Bridging (EVB) |
| Compliant Standards | IEEE 802.3z, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3az, IEEE 802.1Qau, IEEE 802.1Qbg |
| Power | |
| Power Consumption Operational | 20 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 5 - 95% |
| Dimensions & Weight | |
| Depth | 6.6 in |
| Height | 2.7 in |
