Switch - managed - 24 x 10/100 + 4 x combo Gigabit SFP - desktop, rack-mountable
| Main Specifications | |
|---|---|

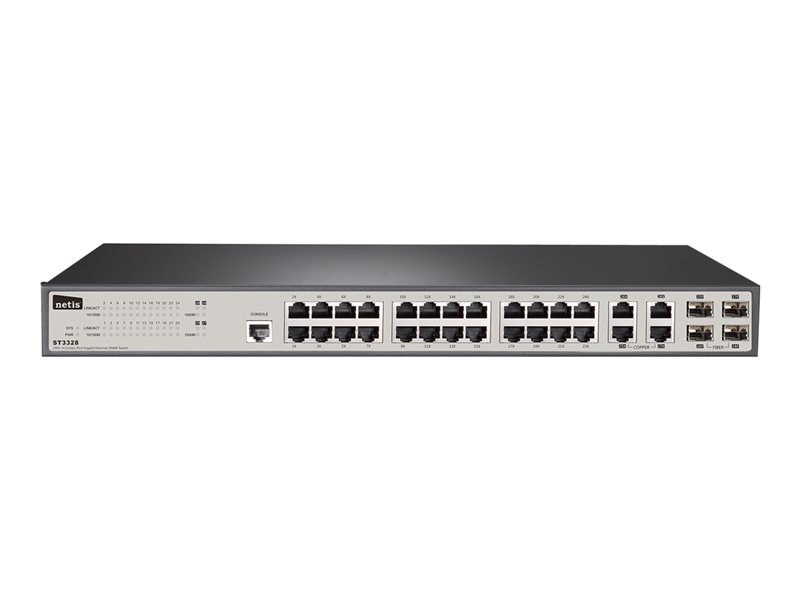

| Product Description | Netis ST3328 - switch - 28 ports - managed - rack-mountable |
| Device Type | Switch - 28 ports - managed |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100 + 4 x combo Gigabit SFP |
| Performance | Switching capacity: 12.8 Gbps |
| Capacity | VLAN groups: 4000 |
| MAC Address Table Size | 8K entries |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, SSH-2, CLI |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Dynamic ARP Inspection (DAI), bandwidth control, Device Link Detection Protocol (DLDP) support, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), IP-MAC binding, Multicast VLAN Registration (MVR), Strict Priority (SP), tagged VLAN, Loopback, Generic VLAN Registration Protocol (GVRP), 4MB packet buffer |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 17 in x 9.8 in x 1.7 in |
| General | |
| Device Type | Switch - 28 ports - managed |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100 + 4 x combo Gigabit SFP |
| Performance | Switching capacity: 12.8 Gbps |
| Capacity | VLAN groups: 4000 |
| MAC Address Table Size | 8K entries |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, SSH-2, CLI |
| Authentication Method | RADIUS, TACACS+ |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Dynamic ARP Inspection (DAI), bandwidth control, Device Link Detection Protocol (DLDP) support, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), IP-MAC binding, Multicast VLAN Registration (MVR), Strict Priority (SP), tagged VLAN, Loopback, Generic VLAN Registration Protocol (GVRP), 4MB packet buffer |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| Status Indicators | Port status, power, system, link/activity |
| Expansion / Connectivity | |
| Interfaces | 24 x 100Base-TX RJ-45 ¦ 4 x Gigabit LAN SFP ¦ 4 x 1000Base-T RJ-45 ¦ 1 x console |
| Miscellaneous | |
| Included Accessories | Mounting brackets |
| Cables Included | 1 x console cable |
| Compliant Standards | FCC |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 17 in |
| Depth | 9.8 in |
| Height | 1.7 in |
