Wireless router - DSL modem - 4-port switch - WAN ports: 2 - Wi-Fi - 2.4 GHz
| Main Specifications | |
|---|---|

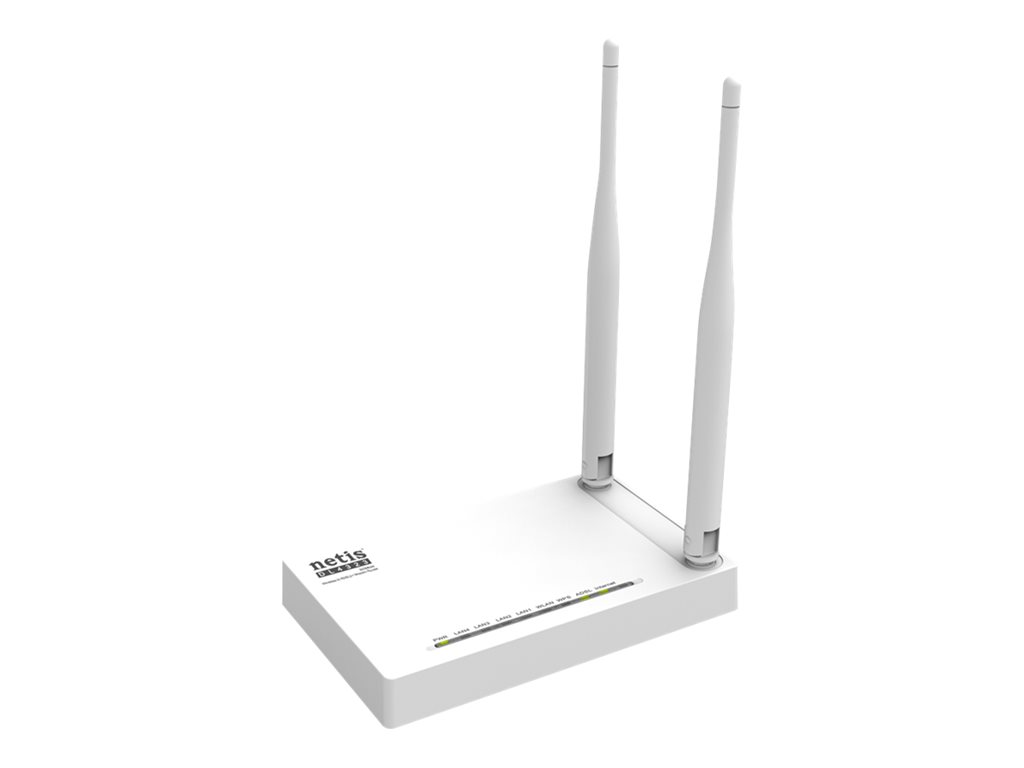

| Product Description | Netis DL4323 - wireless router - DSL modem - Wi-Fi - desktop |
| Device Type | Wireless router - DSL modem - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Digital Signaling Protocol | ADSL, ADSL2, ADSL2+ |
| WAN Ports Qty | 2 |
| Data Link Protocol | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz |
| Data Transfer Rate | 300 Mbps |
| Network / Transport Protocol | PPPoE, PPPoA, AAL5, IPoA, DHCP |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP, Telnet, HTTP, CLI, TR-069 |
| Features | Firewall protection, NAT support, auto-uplink (auto MDI/MDI-X), IGMP snooping, MAC address filtering, IPv6 support, VPN passthrough, Access Control List (ACL) support, Quality of Service (QoS), Wi-Fi Protected Setup (WPS), Multiple SSID support, reset button, DHCP relay, DNS relay, lightning protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, UPnP |
| Dimensions (WxDxH) | 5.7 in x 3.5 in x 1 in |
| General | |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz |
| Data Transfer Rate | 300 Mbps |
| Network / Transport Protocol | PPPoE, PPPoA, AAL5, IPoA, DHCP |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP, Telnet, HTTP, CLI, TR-069 |
| Encryption Algorithm | AES, 128-bit WEP, 64-bit WEP, TKIP, WPA, WPA2 |
| Features | Firewall protection, NAT support, auto-uplink (auto MDI/MDI-X), IGMP snooping, MAC address filtering, IPv6 support, VPN passthrough, Access Control List (ACL) support, Quality of Service (QoS), Wi-Fi Protected Setup (WPS), Multiple SSID support, reset button, DHCP relay, DNS relay, lightning protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, UPnP, FCC |
| Status Indicators | Power, WLAN, LAN, ADSL, WPS, Internet |
| Expansion / Connectivity | |
| Interfaces | WAN: 1 x ADSL2+ - RJ-11 ¦ LAN: 3 x 10Base-T/100Base-TX - RJ-45 ¦ WAN / LAN: 1 x 10Base-T/100Base-TX - RJ-45 |
| Miscellaneous | |
| Included Accessories | ADSL splitter |
| Cables Included | 1 x network cable ¦ 2 x phone cable |
| Power | |
| Power Device | External power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Communications | |
| Type | DSL modem |
| Digital Signaling Protocol | ADSL, ADSL2, ADSL2+ |
| Max Transfer Rate | 24 Mbps |
| Dimensions & Weight | |
| Width | 5.7 in |
| Depth | 3.5 in |
| Height | 1 in |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 2 |
| Gain Level | 5 dBi |
