Barebone - mini PC - 1 x Celeron N3160 / 1.6 GHz - RAM 0 GB - HD Graphics - Gigabit Ethernet WLAN: - Bluetooth 4.0, 802.11a/b/g/n/ac
| Main Specifications | |
|---|---|
| Product Description | ZOTAC ZBOX nano CI325 - mini PC - Celeron N3160 1.6 GHz - 0 GB - no HDD |
| Type | PC barebone - mini PC |
| Localization | Region: United States |
| Processor | 1 x Intel Celeron N3160 / 1.6 GHz (, up to 2.24 GHz, (Quad-Core) |
| Processor Main Features | Intel Turbo Boost Technology |
| Cache Memory | 2 MB |
| Cache Per Processor | 2 MB |
| RAM | 0 GB (installed) / 8 GB (max) - DDR3L SDRAM |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Card Reader | 3 in 1 |
| Graphics Controller | Intel HD Graphics |
| Networking | 1GbE, 802.11a, 802.11b/g/n, Bluetooth 4.0, Wi-Fi 5 |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 5 in x 5 in x 2.2 in |
| General | |
| Type | PC barebone |
| Product Form Factor | Mini PC |
| Localization | Region: United States |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 2 (total) / 2 (free) x SO-DIMM 204-pin |

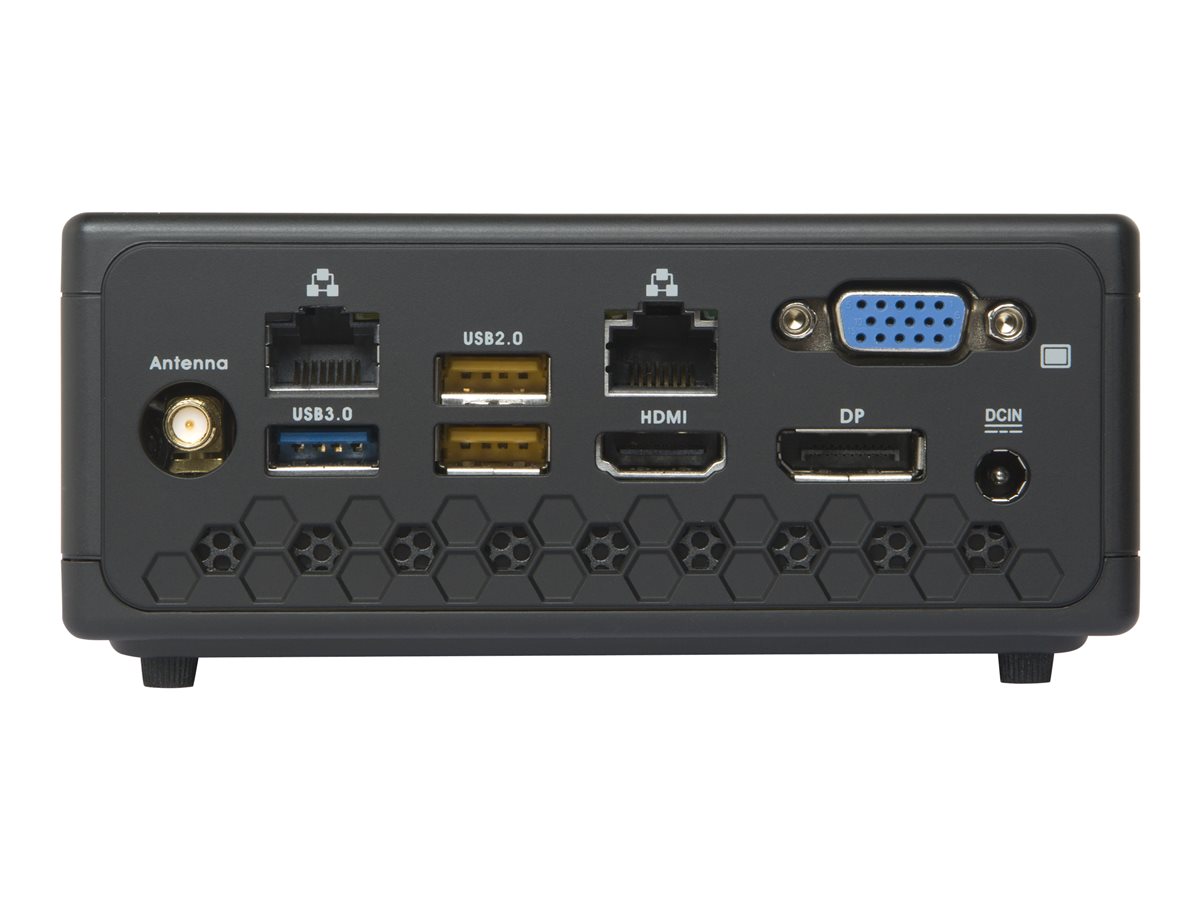

| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x VGA ¦ 1 x microphone - mini-jack ¦ 1 x SPDIF output/headphones ¦ 2 x USB 3.0 (1 front, 1 rear) ¦ 1 x USB-C 3.0 ¦ 2 x USB 2.0 ¦ 2 x LAN (Gigabit Ethernet) |
| Miscellaneous | |

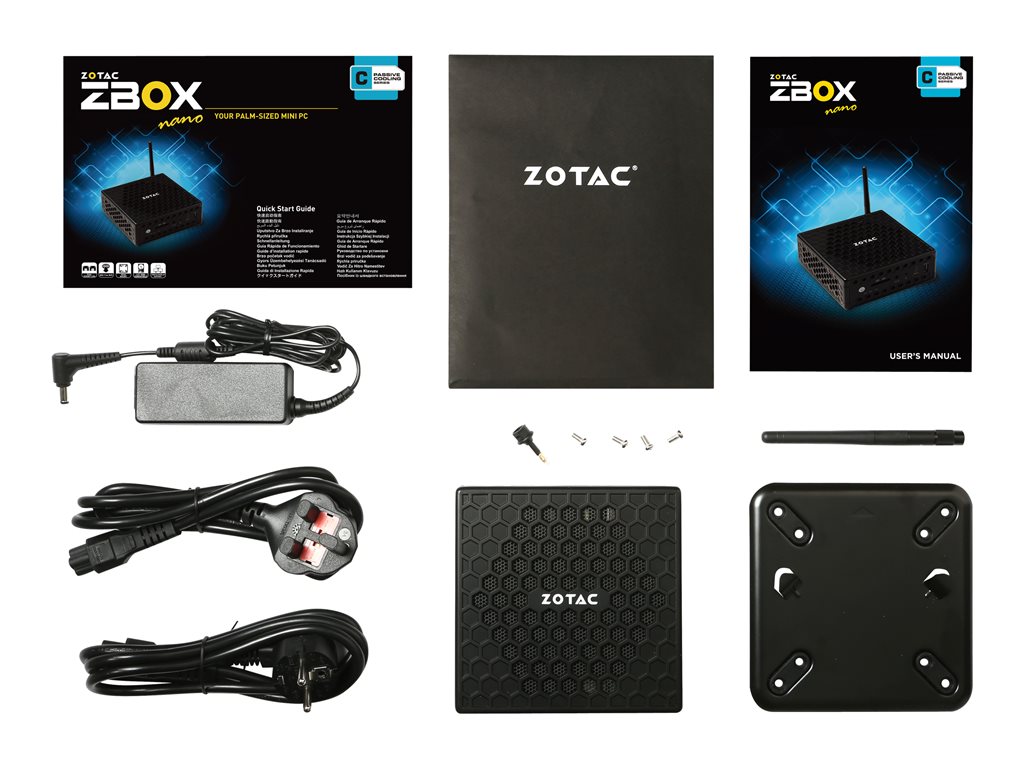

| Included Accessories | Wireless antenna, VESA mounting kit |
| Cables Included | S/PDIF optical adapter |
| RAM | |
| Installed Size | 0 GB / 8 GB (max) |
| Technology | DDR3L SDRAM |
| Form Factor | SO-DIMM 204-pin |
| Slots | 2 (total) / 2 (empty) |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac |
| Compliant Standards | Bluetooth 4.0, IEEE 802.11ac |
| Power | |
| Device Type | Power adapter |
| Storage Controller | |
| Type | SATA |
| Controller Interface Type | SATA 6Gb/s |
| Cache Memory | |
| Installed Size | 2 MB |
| Cache Per Processor | 2 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel HD Graphics |
| Video Interfaces | VGA, HDMI, DisplayPort |
| Operating System / Software | |
| OS Provided | No operating system |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 5 in |
| Depth | 5 in |
| Height | 2.2 in |
| Card Reader | |
| Type | 3 in 1 card reader |
| Supported Flash Memory Cards | SD Memory Card, SDHC Memory Card, SDXC Memory Card |
| Processor / Chipset | |
| CPU | Intel Celeron N3160 |
| Clock Speed | 1.6 GHz |
| Max Turbo Speed | 2.24 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Turbo Boost Technology |
