ZOTAC ZBOX MAGNUS EN72080V
Back to Results
Main Specifications
Product Description

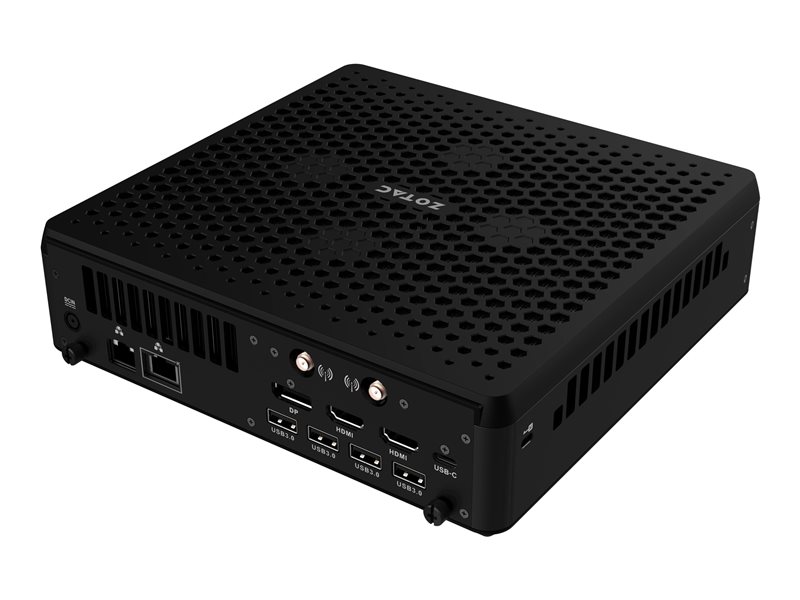

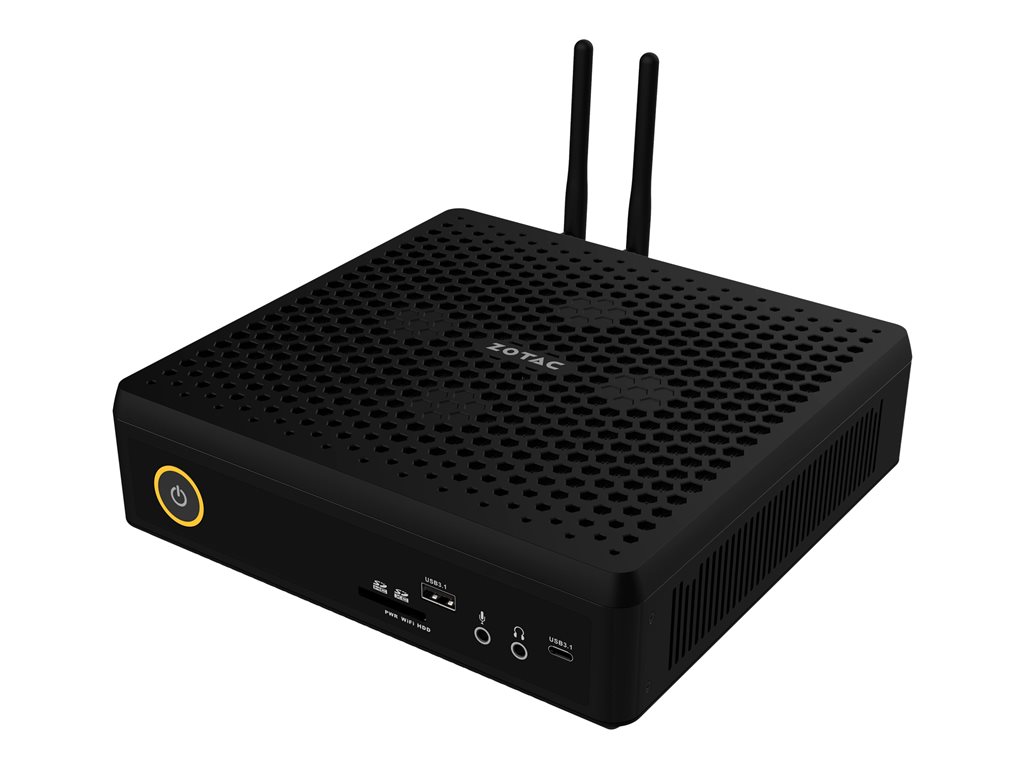

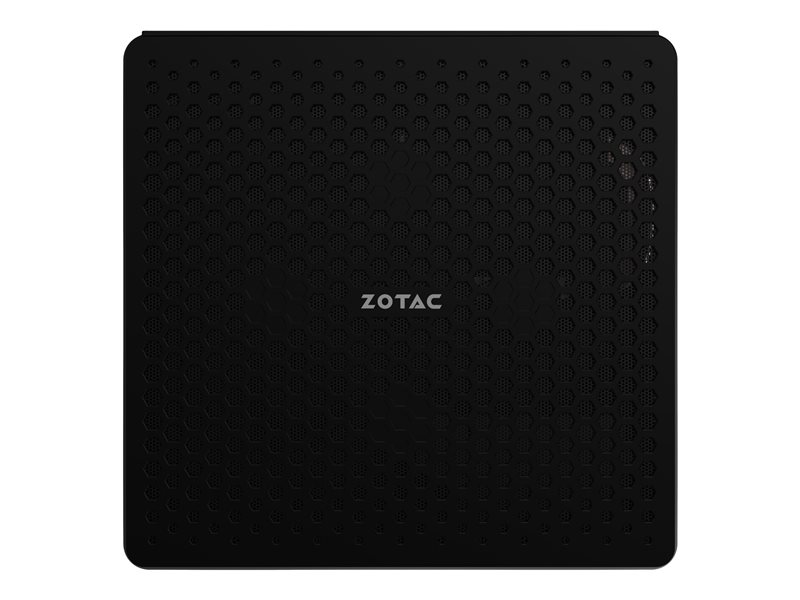

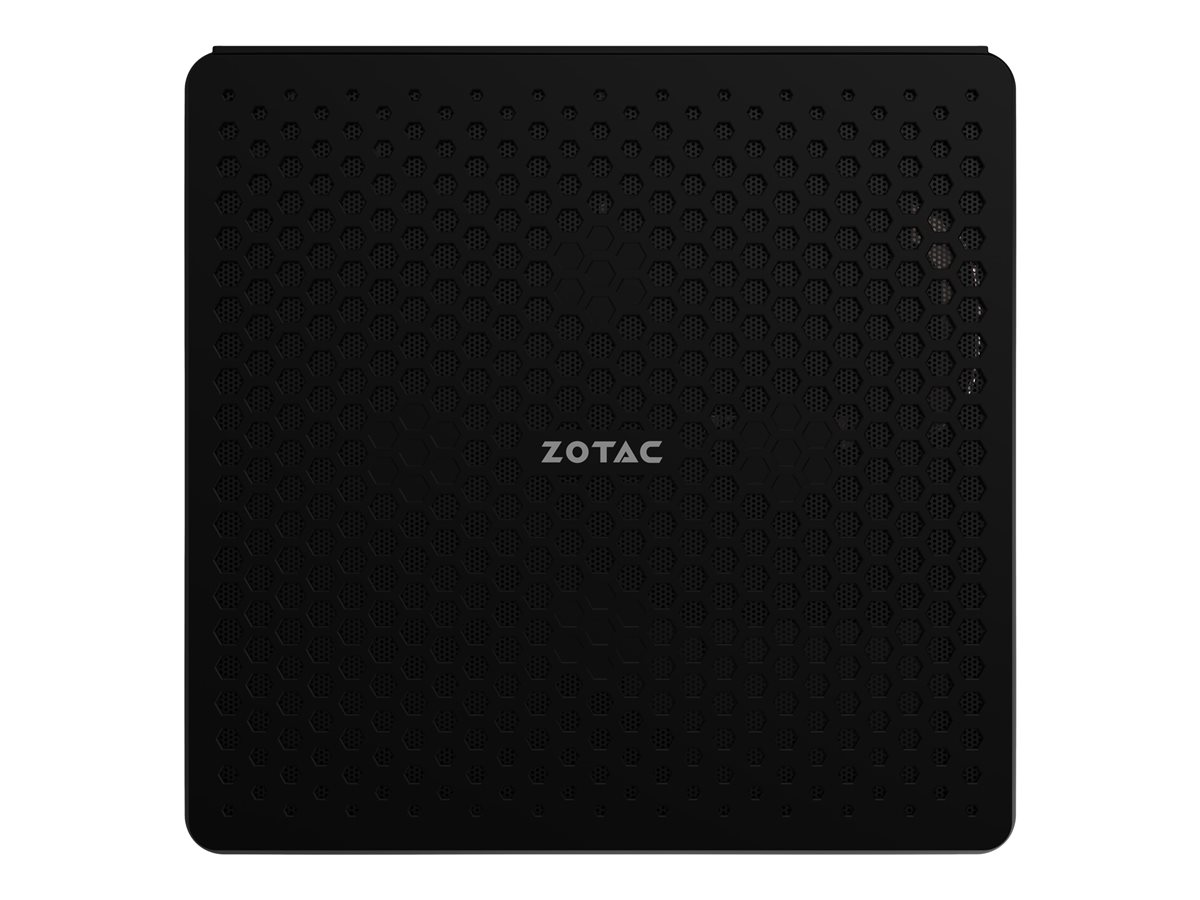

ZOTAC ZBOX MAGNUS EN72080V - mini PC - Core i7 9750H 2.6 GHz - 0 GB - no HDD
Type
Personal computer - mini PC
Localization
Region: United States
Processor
Intel Core i7 (9th Gen) 9750H / 2.6 GHz (4.5 GHz) (6-core)
RAM
0 GB (installed) / 32 GB (max) - DDR4 SDRAM
Storage Controller
SATA (SATA 6Gb/s)
Hard Drive
No HDD
Optical Storage
No optical drive
Card Reader
3 in 1
Graphics Controller
NVIDIA GeForce RTX 2080
Video Memory
8 GB
Networking
GigE, 802.11a, 802.11b/g/n, 802.11ac, 2.5 GigE, Bluetooth 5.0, 802.11ax (Wi-Fi 6)
OS Provided
No operating system
Dimensions (WxDxH)
8.3 in x 8 in x 2.4 in
General
Type
Personal computer
Product Form Factor
Mini PC
Localization
Region: United States
Expansion / Connectivity
Bays
1 (total) / 1 (free) x internal 2.5"
Slots
1 (total) / 1 (free) x M.2 Card - 2242/2280

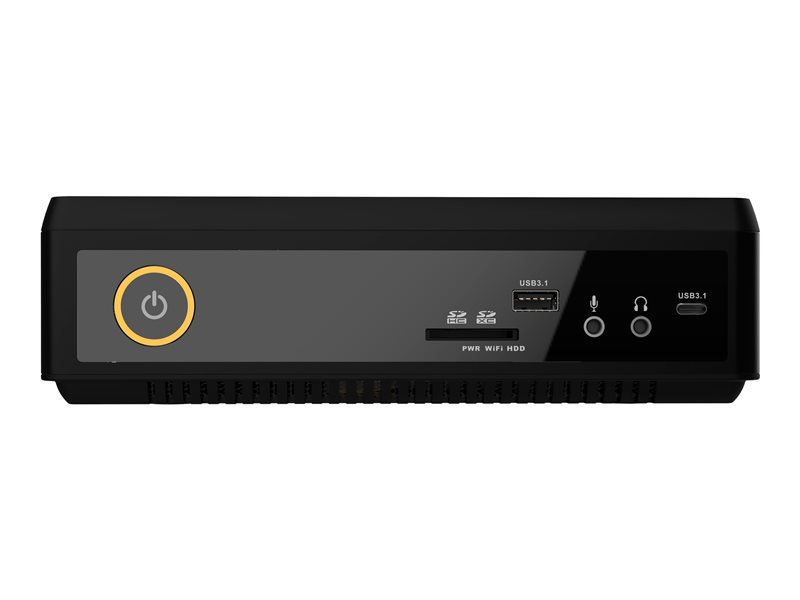

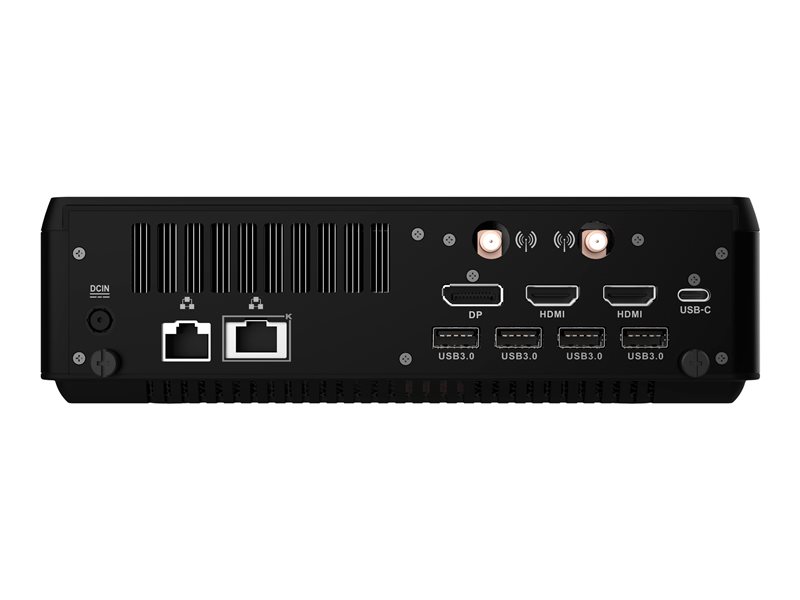

Interfaces
1 x DisplayPort ¦ 2 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x USB 3.1 ¦ 1 x USB-C 3.1 ¦ 1 x headphones ¦ 1 x microphone ¦ 4 x USB 3.0 ¦ 1 x USB-C
Miscellaneous

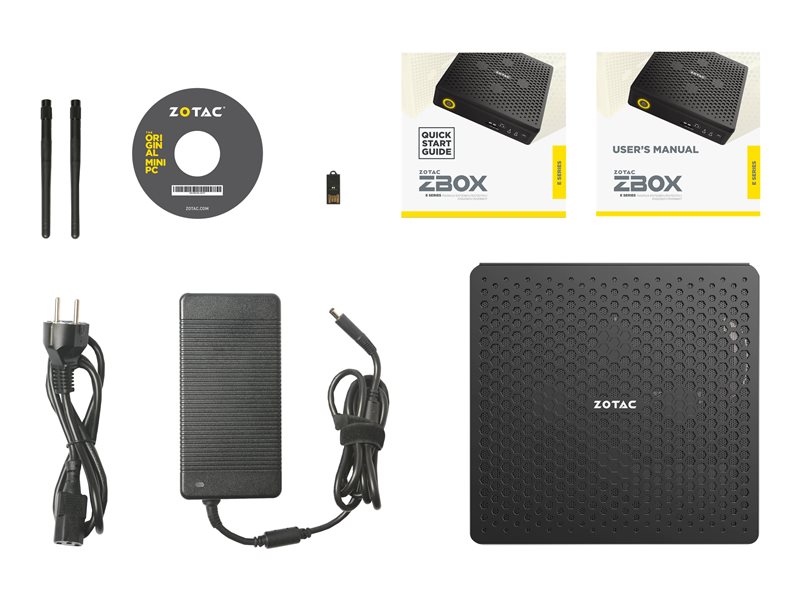

Included Accessories
Wireless antenna
Theft/Intrusion Protection
Security lock slot (cable lock sold separately)
Security Slot Type
Kensington security slot
RAM
Installed Size
0 GB / 32 GB (max)
Technology
DDR4 SDRAM
Form Factor
SO-DIMM 260-pin
Slots
2 (total) / 2 (empty)
Networking
Ethernet Ports
1 x 2.5 Gigabit Ethernet, 1 x Gigabit Ethernet
Wireless LAN Supported
Yes
Wireless NIC
Killer Wi-Fi 6 AX1650
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
Power
Device Type
Power adapter
Power Provided
330 Watt
Storage Controller
Type
1 x SATA
Controller Interface Type
SATA 6Gb/s
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Graphics Processor
NVIDIA GeForce RTX 2080
Video Memory
8 GB
Video Interfaces
HDMI, DisplayPort
Operating System / Software
OS Provided
No operating system
Software
Drivers & Utilities
Hard Drive
Type
No HDD
Dimensions & Weight
Width
8.3 in
Depth
8 in
Height
2.4 in
Dimensions & Weight (Shipping)
Shipping Width
10.4 in
Shipping Depth
10.8 in
Shipping Height
5.1 in
Card Reader
Type
3 in 1 card reader
Supported Flash Memory Cards
SD Memory Card, SDHC Memory Card, SDXC Memory Card
Processor / Chipset
CPU
Intel Core i7 (9th Gen) 9750H
Clock Speed
2.6 GHz
Max Turbo Speed
4.5 GHz
Number of Cores
6-core
CPU Qty
1
Max CPU Qty
1
