Elmo TT-12F - document camera - with CRA-2 Wireless Tablet
Device Type
Document camera
Bundled with
CRA-2 Wireless Tablet
Audio
Yes: built-in microphone
Dimensions (WxDxH)
13.7 in x 14.8 in x 17 in
Weight
6.61 lbs
Connectivity Technology
Wired
Camera
Color
Optical Zoom
12 x
Max Resolution
3840 x 2160
Frame Rate (max)
60 frames per second
Video Modes
4K
Optical Sensor Type
CMOS - 1/2.3" - 12 MP
Focal Length
4 mm - 48 mm
Focus Adjustment
Automatic
Lens Iris
F/3.2-3.6
Interfaces
USB 3.0, VGA, HDMI
Cables Included
1 - SuperSpeed USB cable - external
Voltage
DC 12 V
Features
Manual white balance, digital image rotation, brightness control, programmable white balance, A3 document size support, built-in white LED lamp
General
Device Type
Document camera
Audio Support
Yes: built-in microphone
Connectivity Technology
Wired
Width
13.7 in
Depth
14.8 in
Height
17 in
Weight
6.61 lbs
Bundled with
CRA-2 Wireless Tablet
Expansion / Connectivity
Ports

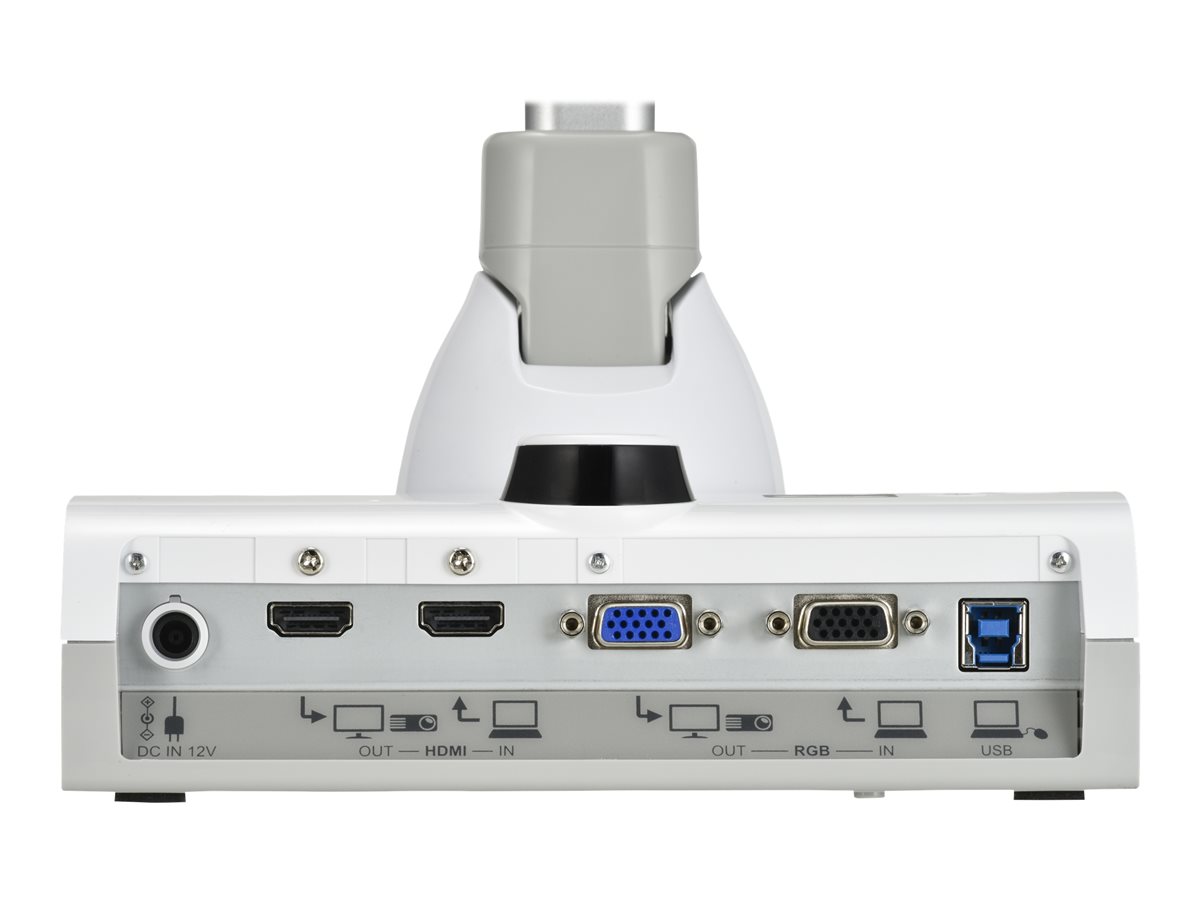

USB 2.0 host - 4 pin USB Type A ¦ VGA output - HD-15 ¦ HDMI output ¦ USB 3.0 - 9 pin USB Type B ¦ Audio line out - 3.5 mm stereo jack ¦ VGA input - HD-15 ¦ HDMI input ¦ Audio line-in/microphone - 3.5 mm stereo jack
Supported Memory Cards
SD Memory Card
Miscellaneous
Included Accessories

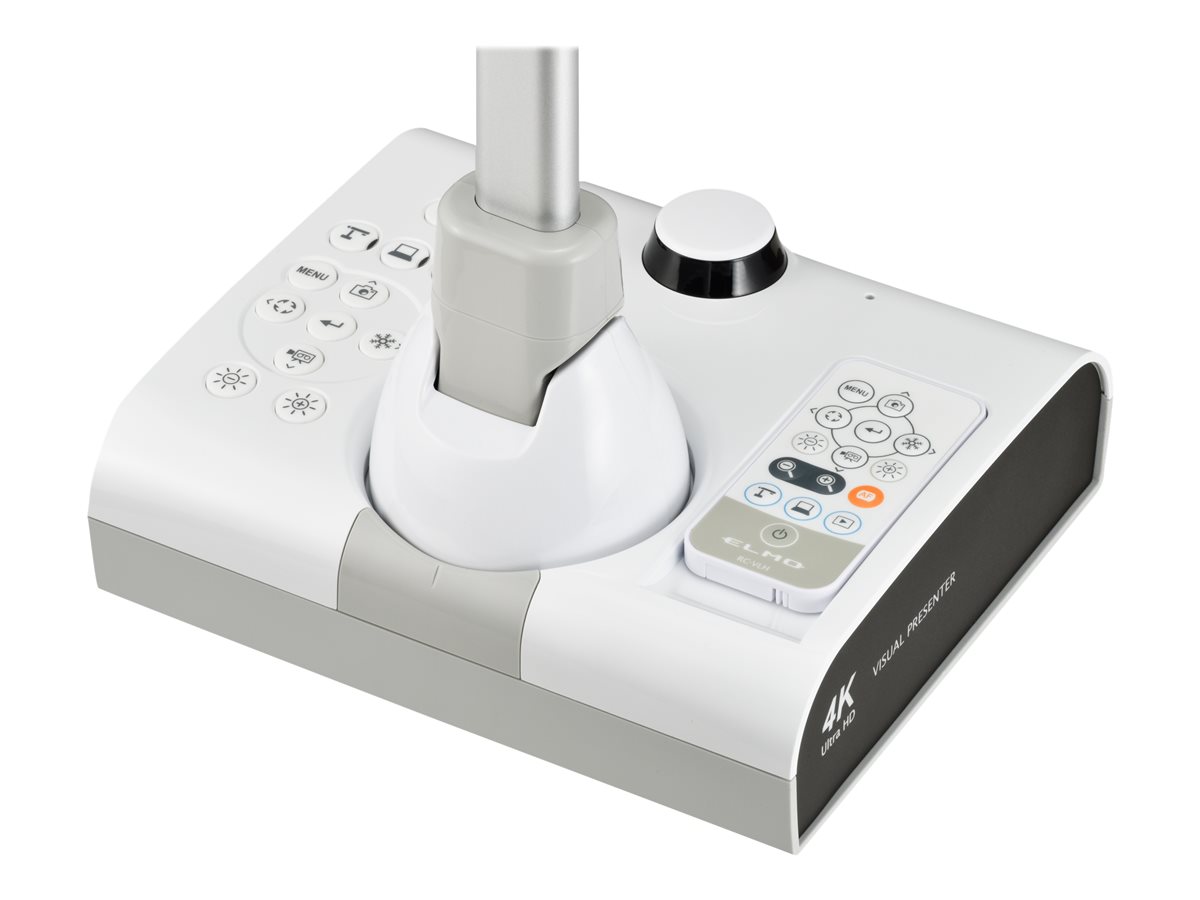

Remote control, 2 HDMI cable fixtures, 2 cable ties
Cables Included
1 x SuperSpeed USB cable - external
Power
Power Requirements
DC 12 V
Power Device
Power adapter - external AC 120/230 V 21 Watt
Camera
Type
Color
Max Digital Video Resolution
3840 x 2160
Video Modes
4K
Digital Zoom
12
Video Capture
3840 x 2160 @ 60 fps ¦ 3520 x 2640 @ 30 fps
Still Image Capture Resolution
1280 x 720, 640 x 480, 1600 x 1200, 1024 x 768, 3200 x 2400, 1920 x 1080, 3840 x 2160
Features
Manual white balance, digital image rotation, brightness control, programmable white balance, A3 document size support, built-in white LED lamp

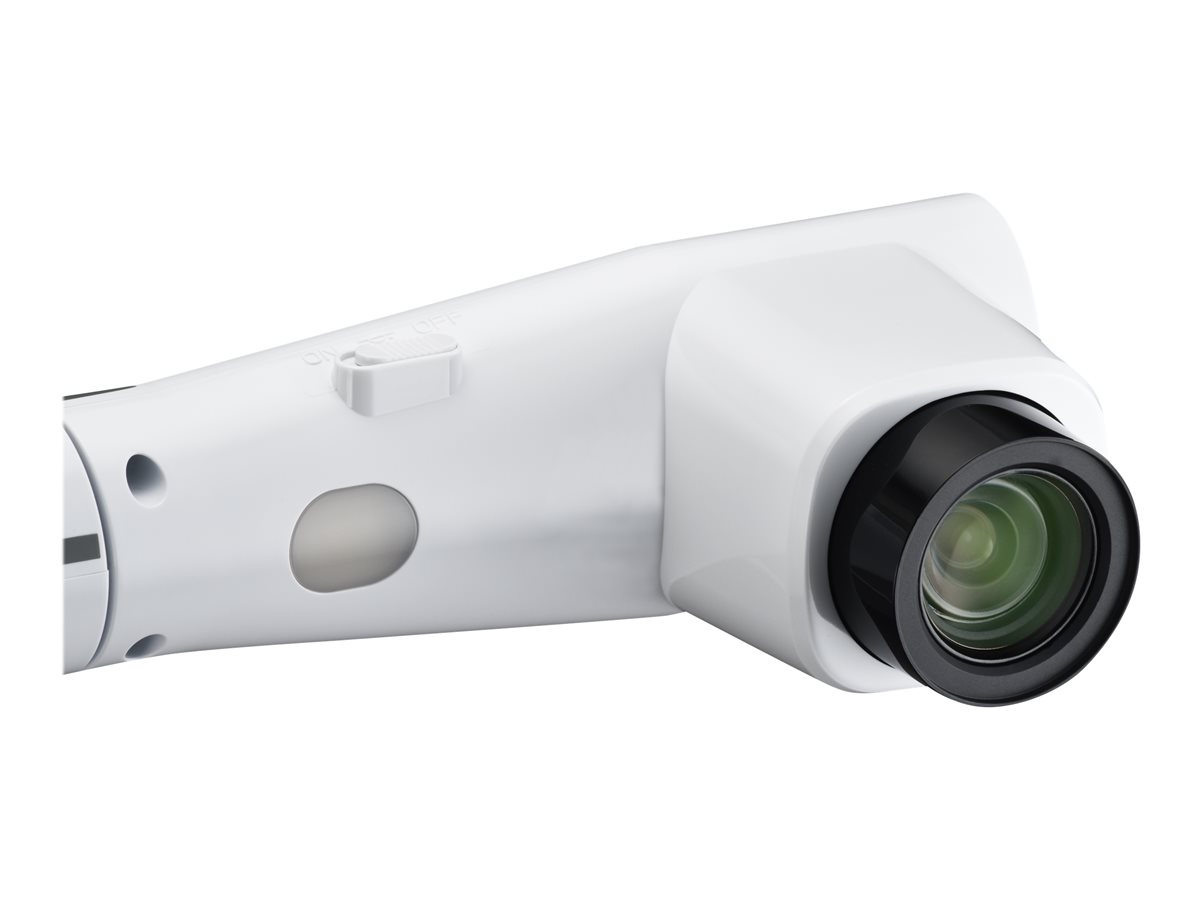

Lens Construction
Optical Zoom
12 x
Focal Length
4 mm - 48 mm
Lens Iris
F/3.2-3.6
Focus Adjustment
Automatic
Image Sensor
Type
12 MP CMOS 1/2.3"
Interfaces
Video
VGA, HDMI
Computer Interface
USB 3.0
