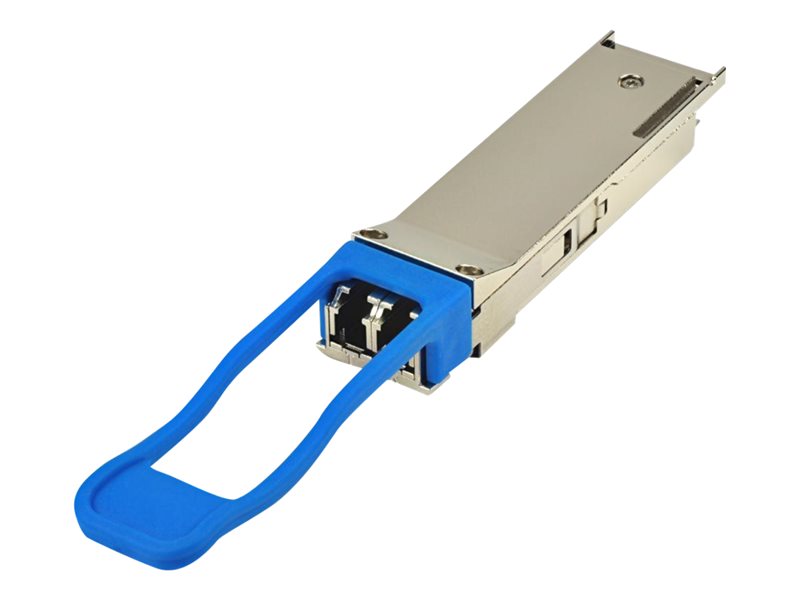

QSFP+ transceiver module - 40 Gigabit LAN - 40GBase-LR4 - LC single-mode - up to 6.2 miles - 1264.5-1277.5 nm / 1284.5-1297.5 nm / 1304.5-1317.5 nm / 1324.5-1337.5 nm
| Main Specifications | |
|---|---|
| Product Description | Finisar FTL4C1QE3C - QSFP+ transceiver module - 40 Gigabit LAN |
| Device Type | QSFP+ transceiver module - LC single-mode |
| Form Factor | Plug-in module |
| Cabling Type | 40GBase-LR4 |
| Data Transfer Rate | 41.2 Gbps |
| Optical Wave Length | 1264.5-1277.5 nm / 1284.5-1297.5 nm / 1304.5-1317.5 nm / 1324.5-1337.5 nm |
| Data Link Protocol | 40 Gigabit LAN |
| Max Transfer Distance | 6.2 miles |
| General | |
| Device Type | QSFP+ transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 40GBase-LR4 - LC single-mode female x 2 |
| Miscellaneous | |
| Compliant Standards | MSA, RoHS 2011/65/EU |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 40GBase-LR4 |
| Data Link Protocol | 40 Gigabit LAN |
| Data Transfer Rate | 41.2 Gbps |
| Optical Wave Length | 1264.5-1277.5 nm / 1284.5-1297.5 nm / 1304.5-1317.5 nm / 1324.5-1337.5 nm |
| Max Transfer Distance | 6.2 miles |
| Features | Digital Diagnostics |
| Compliant Standards | IEEE 802.3ba |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
