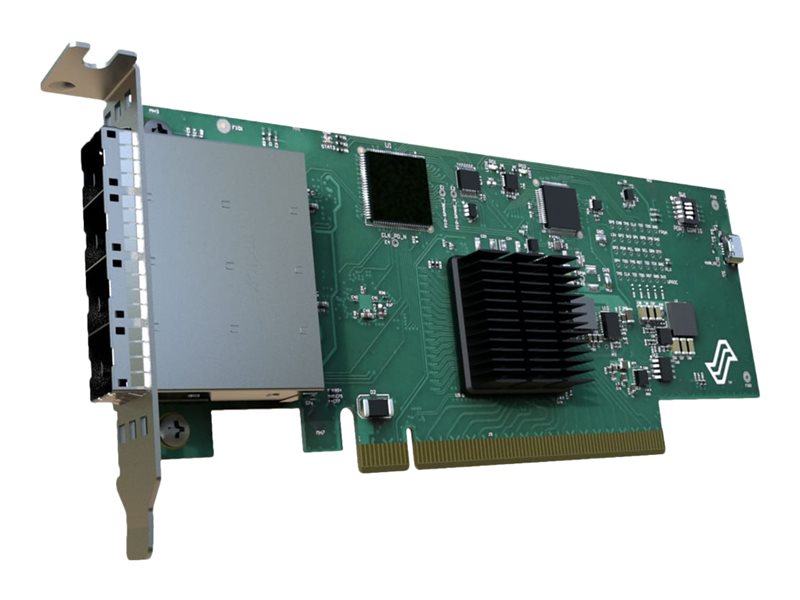

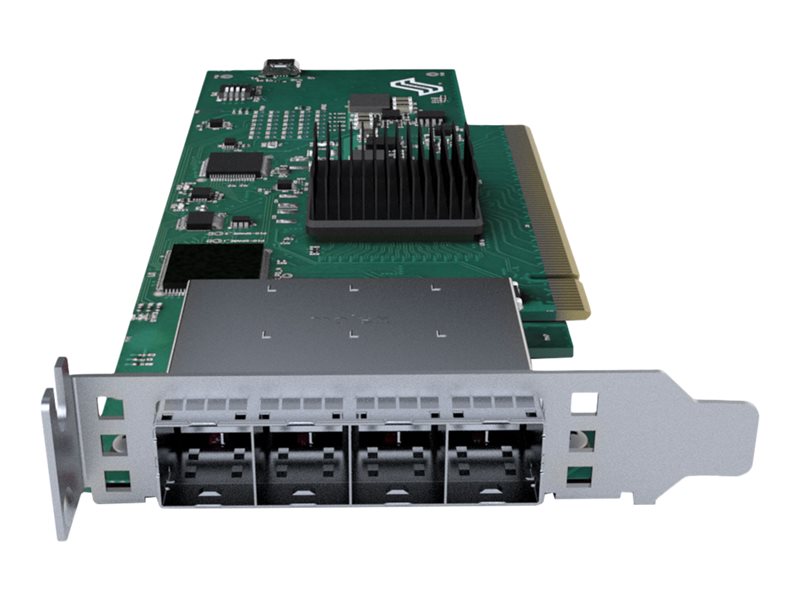

Host bus adapter - PCIe 4.0 x16
| Main Specifications | |
|---|---|
| Product Description | Liqid LQD1416 - host bus adapter - PCIe 4.0 x16 |
| Device Type | Host bus adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 4.0 x16 |
| PCI Specification Revision | PCIe 4.0 |
| Dimensions (WxDxH) | 6.1 in x 2.9 in |
| Performance | Data transfer rate: 256 GB/s |
| Processor | 1 x Broadcom PEX88032 |
| General | |
| Device Type | Host bus adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 4.0 x16 |
| PCI Specification Revision | PCIe 4.0 |
| Expansion / Connectivity | |
| Interfaces | 4 - SFF-8644 |
| Networking | |
| Connectivity Technology | Wired |
| Performance | Data transfer rate: 256 GB/s |
| Features | Direct Memory Access (DMA) support |
| Power | |
| Power Consumption Operational | 15 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Processor / Memory | |
| Processor | 1 x Broadcom PEX88032 |
| Dimensions & Weight | |
| Depth | 6.1 in |
| Height | 2.9 in |
