Dell D7523QT
- Back to Results
Main Specifications
|
---|
Product Description
|

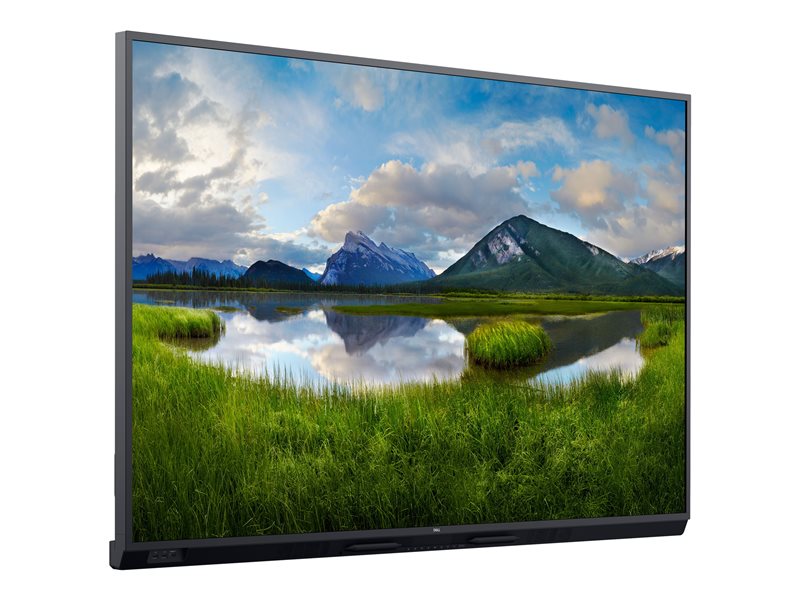

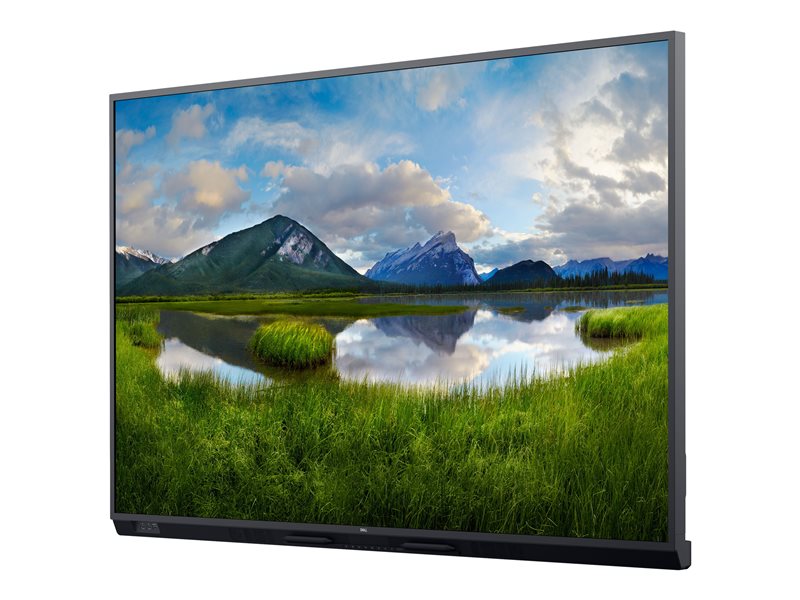

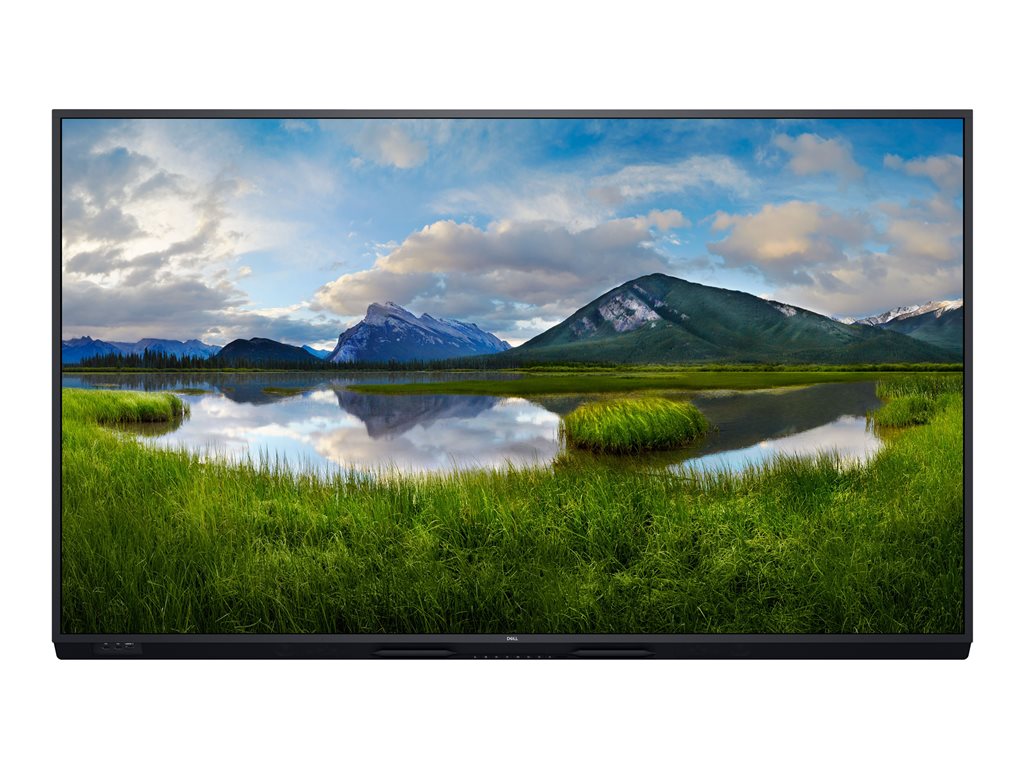

Dell D7523QT D Series - 75" Class (74.52" viewable) LED-backlit LCD display - 4K - for interactive communication
|
Product Type
|
LED-backlit LCD flat panel display with touchscreen (multi touch)
|
Diagonal Class
|
75"
|
Diagonal Size
|
74.52"
|
Commercial Use
|
Yes - interactive
|
Resolution
|
3840 x 2160
|
Display Format
|
4K UHD (2160p)
|
Video Interface
|
HDMI
|
HDMI Ports Qty
|
3 ports
|
PC Interface
|
DisplayPort
|
Technology
|
IPS
|
LCD Backlight Technology
|
LED backlight
|
Image Aspect Ratio
|
16:9
|
TV Tuner
|
No tuner
|
Picture Enhancements
|
72% Color Gamut NTSC
|
Speaker System
|
2 speakers
|
USB
|
Yes
|
Included Accessories
|
Remote control, remote control, 2 AAA batteries, 2 styluses, 5 x wire saddles
|
Voltage
|
AC 100-240 V (50/60 Hz)
|
Power Consumption (On mode)
|
147.5 W
|
Power Consumption Stand by
|
0.3 Watt
|
Dimensions (WxDxH) - without stand
|
67.5 in x 4.2 in x 40.6 in
|
Weight
|
124.45 lbs
|
Pricing Type
|
BTO
|
Manufacturer Warranty
|
3 years Basic Hardware Service with Advanced Exchange
|
General
|
---|
Product Type
|
LED-backlit LCD flat panel display
|
Power Consumption (Max)
|
245 Watt
|
Power Consumption (On mode)
|
147.5 W
|
Diagonal Class
|
75"
|
Diagonal Size
|
74.52"
|
Commercial Use
|
Yes - interactive
|
Combined With
|
Touchscreen (multi touch)
|
Series
|
D Series
|
TV Tuner
|
No tuner
|
TV Tuner Presence
|
No
|
Video Interface
|
HDMI
|
HDMI Ports Qty
|
3 ports
|
PC Interface
|
DisplayPort
|
Picture Enhancements
|
72% Color Gamut NTSC
|
Dimensions
|
Without stand
|
Width
|
67.5 in
|
Depth
|
4.2 in
|
Height
|
40.6 in
|
Weight
|
124.45 lbs
|
Pricing Type
|
BTO
|
Manufacturer Warranty
|
---|
Bundled Services
|
3 years Basic Hardware Service with Advanced Exchange
|
Miscellaneous
|
---|
Security Slot Type
|
Kensington security slot
|
Included Accessories
|
Remote control, 2 AAA batteries, 2 styluses, 5 x wire saddles
|
Cables Included
|
SuperSpeed USB cable ¦ DisplayPort cable ¦ HDMI cable
|
Compliant Standards
|
RoHS, Mercury-free
|
Power
|
---|
Power Device
|
Power supply
|
Input Voltage
|
AC 100-240 V (50/60 Hz)
|
Power Consumption Stand by
|
0.3 Watt
|
Environmental Parameters
|
---|
Min Operating Temperature
|
32 °F
|
Max Operating Temperature
|
104 °F
|
Humidity Range Operating
|
10 - 80% (non-condensing)
|
Display
|
---|
LCD Display Technology
|
IPS
|
Pixel Pitch
|
0.4296 mm
|
Color Support
|
1070000000 colors
|
Resolution
|
3840 x 2160
|
Display Format
|
4K UHD (2160p)
|
Image Aspect Ratio
|
16:9
|
LCD Backlight Technology
|
LED backlight
|
Coating
|
Anti-glare, 3H Hard
|
Image Contrast Ratio
|
1200:1
|
Dynamic Contrast Ratio
|
1200:1
|
Brightness
|
430 cd/m²
|
Viewing Angle
|
178°
|
Viewing Angle (Vertical)
|
178°
|
Response Time
|
8 ms
|
V-Sync Rate at Max Res.
|
60 Hz
|
Additional Features
|
Security lock slot (cable lock sold separately), 1.08 billion colors (8-bit+FRC), built-in USB hub
|

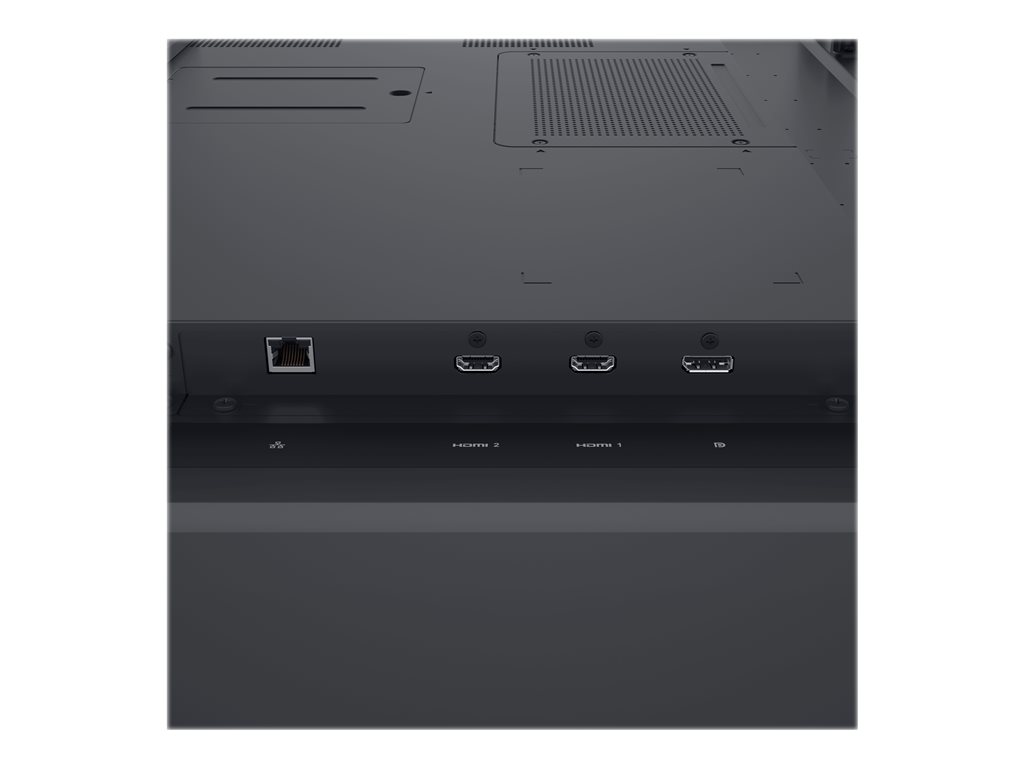

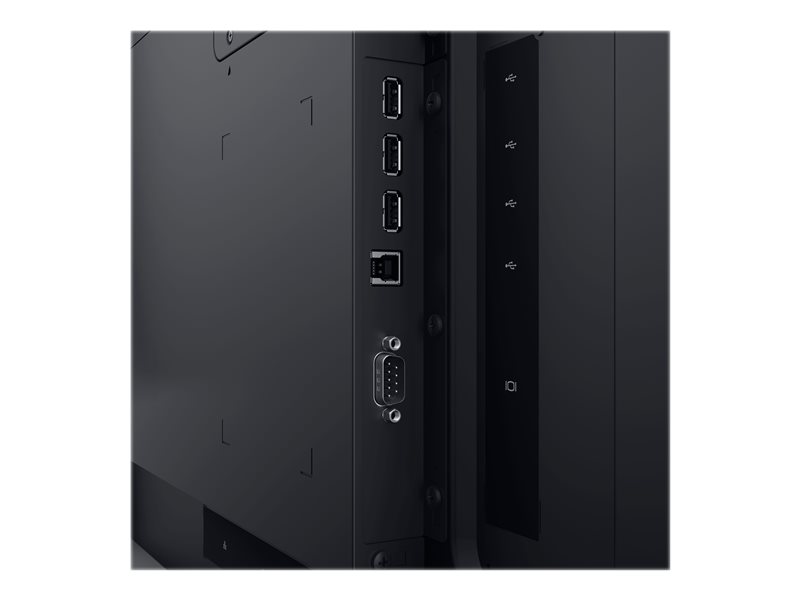

Connections
|
---|
Connector Type
|
DisplayPort ¦ 3 x HDMI input ¦ LAN ¦ 5 x USB ¦ USB ¦ RS-232 input
|
Remote Control
|
---|
Type
|
Remote control
|
Audio System
|
---|
Speaker System
|
2 speakers
|
Output Power / Total
|
24 Watt
|
Speakers
|
2 x speaker - 12 Watt
|
Dimensions & Weight (Shipping)
|
---|
Weight (Shipping)
|
152.12 lbs
|

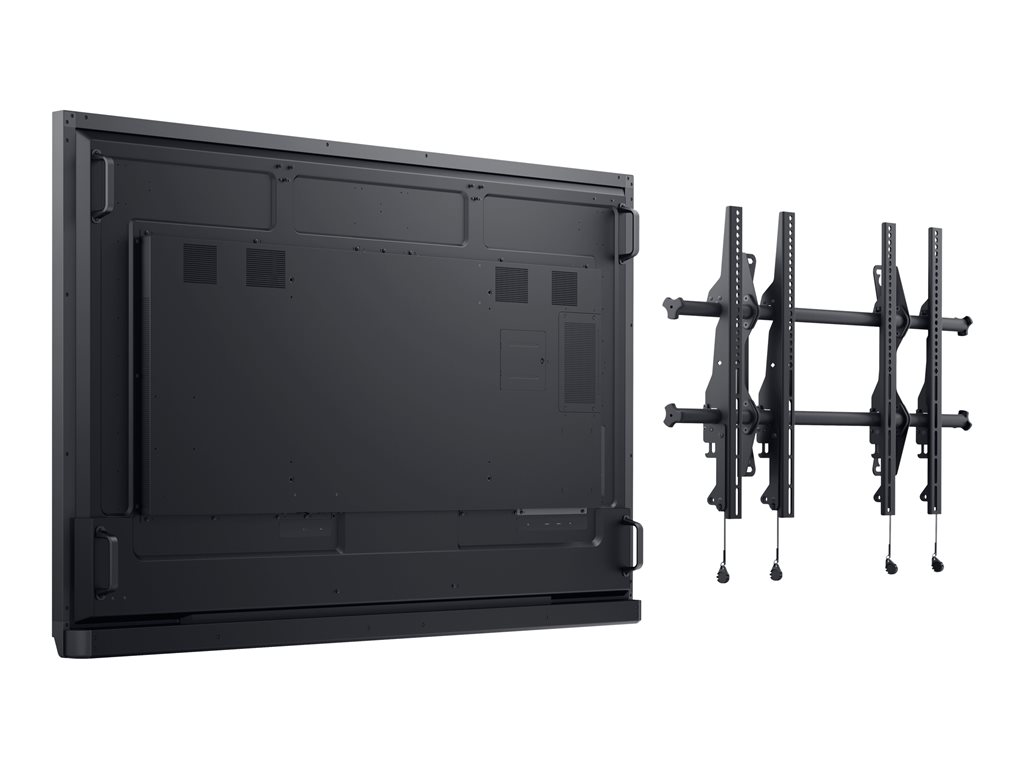

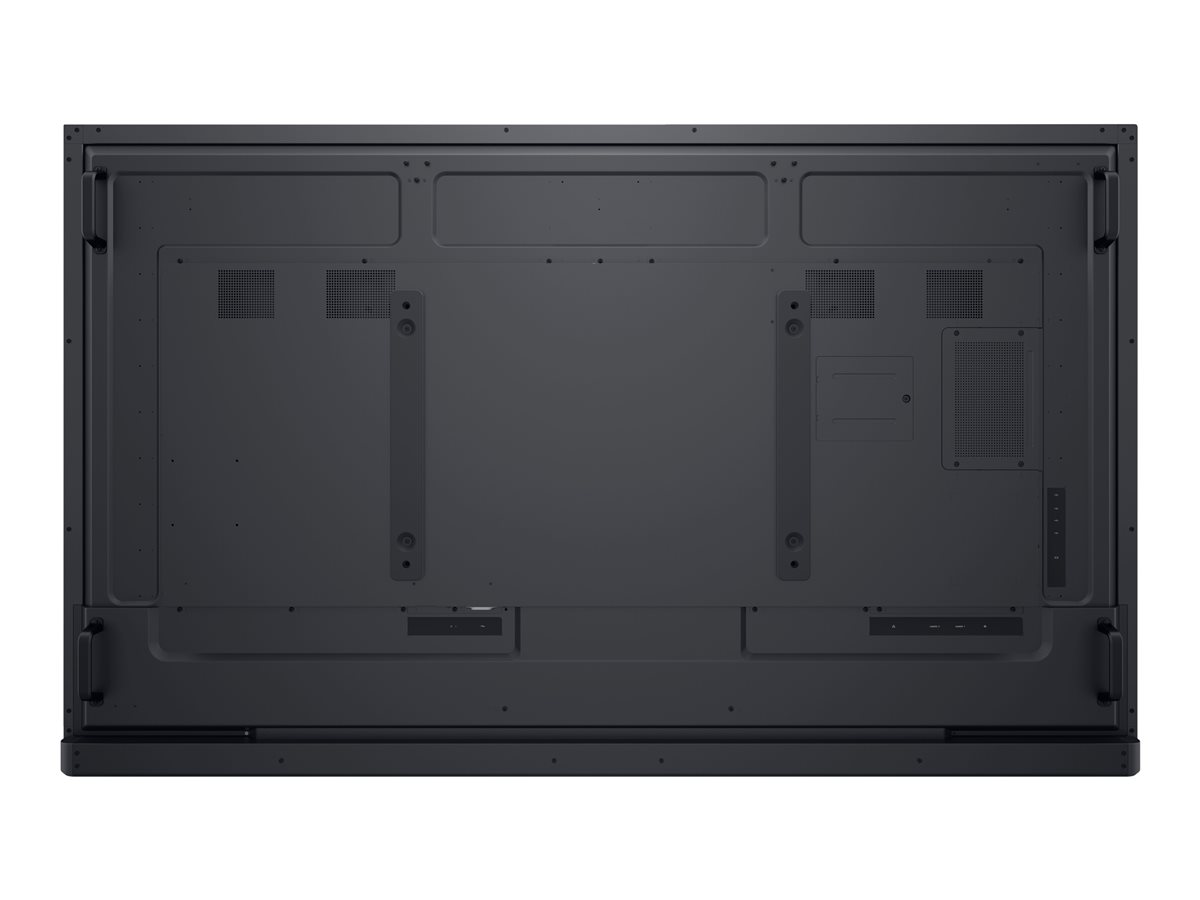

Stands & Mounts
|
---|
Flat Panel Mount Interface
|
600 x 400 mm
|
VESA Compatibility
|
Yes
|
Media Player
|
---|
USB Port
|
Yes
|
