Power amplifier - 4 x 1200 Watt
| Main Specifications | |
|---|---|
| Product Description | Bose PowerShareX PSX4804D - power amplifier |
| Product Type | Power amplifier |
| Localization | North America, Europe |
| Audio Specifications | Amplifier - 20 - 20000 Hz - 110 dB <0.1% |
| Output Power | 4800 Watt |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 19 in x 14.1 in x 1.8 in |
| Weight | 15.43 lbs |
| General | |
| Product Type | Power amplifier |
| Localization | North America, Europe |
| Power | |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Connections | |

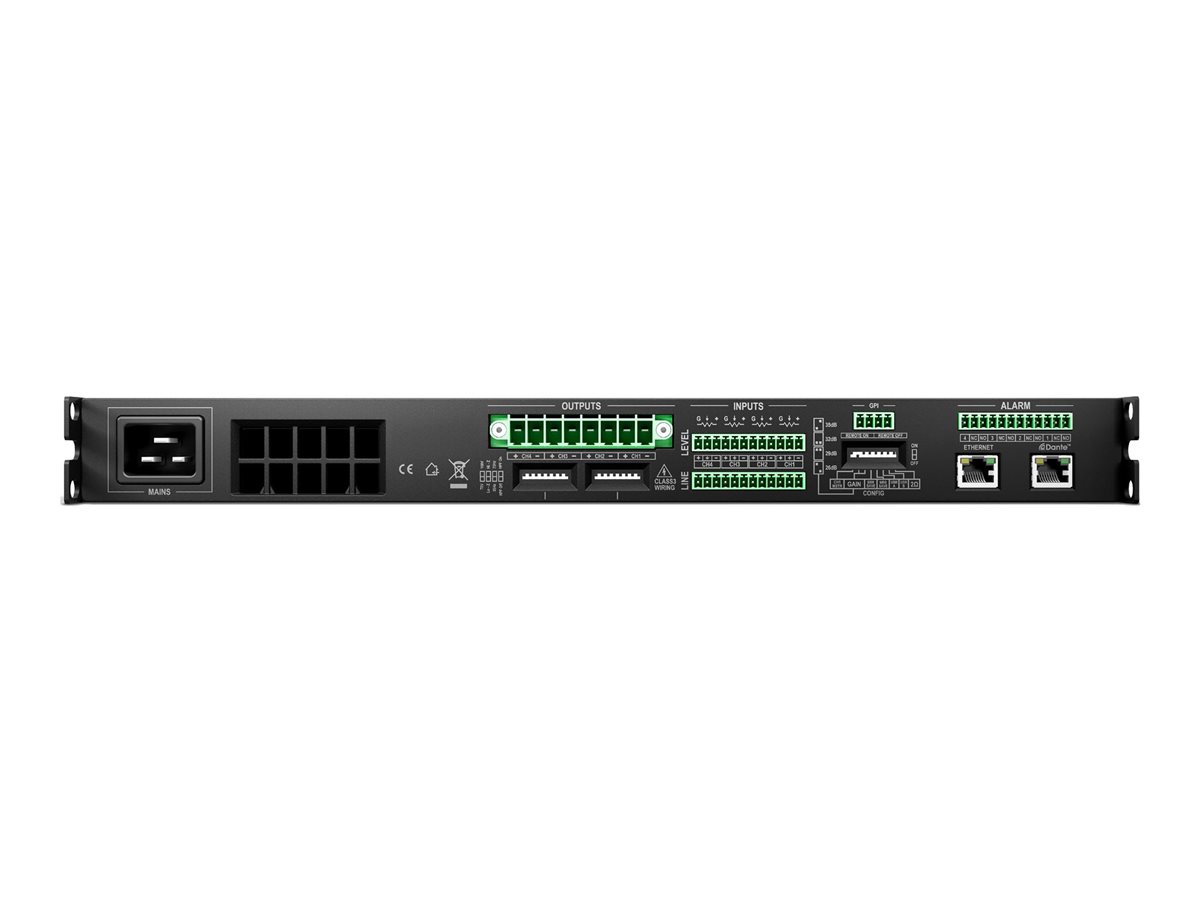

| Connectors | 4 x balanced audio input (6-pin Euroblock) - rear ¦ 4 x Dante (RJ-45) - rear ¦ GPIO (terminal block) - rear ¦ 4 x speakers output (8-pin Euroblock) - rear |
| Dimensions & Weight | |
| Width | 19 in |
| Depth | 14.1 in |
| Height | 1.8 in |
| Weight | 15.43 lbs |
| Audio System | |
| Functions | Amplifier |
| Amplifier Class | D |
| Audio D/A Converter | 24bit / 48kHz |
| Digital Sound Processor (DSP) | Yes |
| Audio Specifications | Amplifier - Response Bandwidth - 20 - 20000 Hz - SNR - 110 dB - THD - <0.1% |
| Input Channel Qty | 4 channels |
| Output Channel Qty | 4 channels |
| Output Power (per channel) | 1200 Watt |
| Output Power / Total | 4800 Watt |
| Peak Output Power / Total | 9600 Watt |
| Input Impedance | 20 kOhm |
| Input Sensitivity | 4.91 V |
| Amplifier Output Details | 1200 Watt - 4 - 8 Ohm - 4 channels ¦ 1200 Watt - 4 channels (70/100V) ¦ 1500 Watt - 2 Ohm - 4 channels ¦ 1300 Watt - 8 Ohm (bridged) ¦ 2600 Watt - 4 Ohm (bridged) ¦ 1800 Watt - 2 Ohm (bridged) ¦ 2100 Watt (70V bridged) ¦ 2200 Watt (100V bridged) |
| Maximum Sampling Rate Supported | 192 kHz |
| Features | Thermal protection, cooling fan, short circuit protection, DC protection, over current protection, built-in DSP, over voltage protection, Peak Level protection, rack mountable, low voltage protection, high frequency protection, 70V/100V or 2/4/8 Ohm operation, variable gain |
| Dimensions & Weight (Shipping) | |
| Weight (Shipping) | 22.71 lbs |
