Digital mixer with 4x DSP FX - 32-channel - rack-mountable
| Main Specifications | |
|---|---|

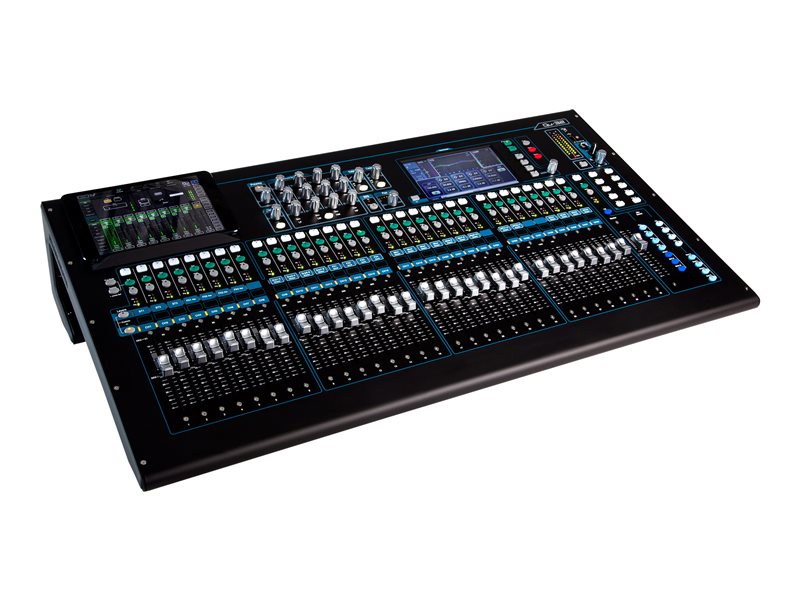

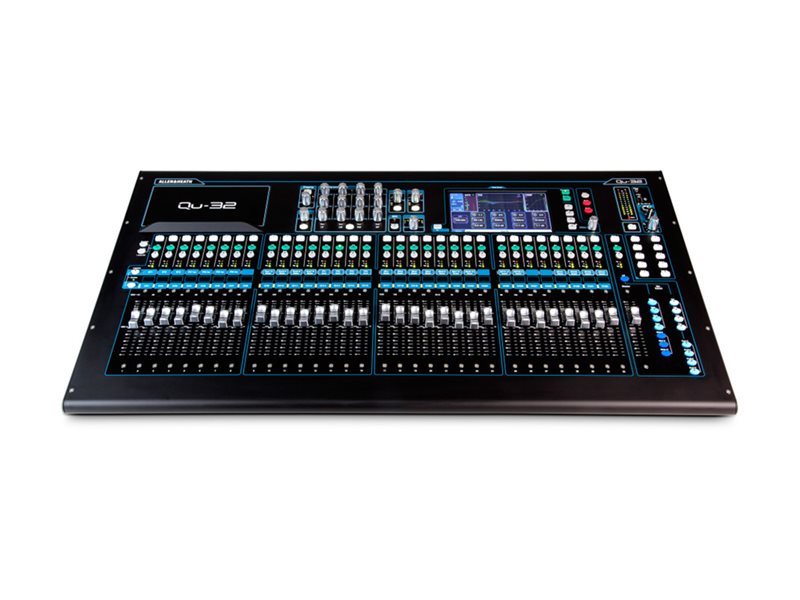

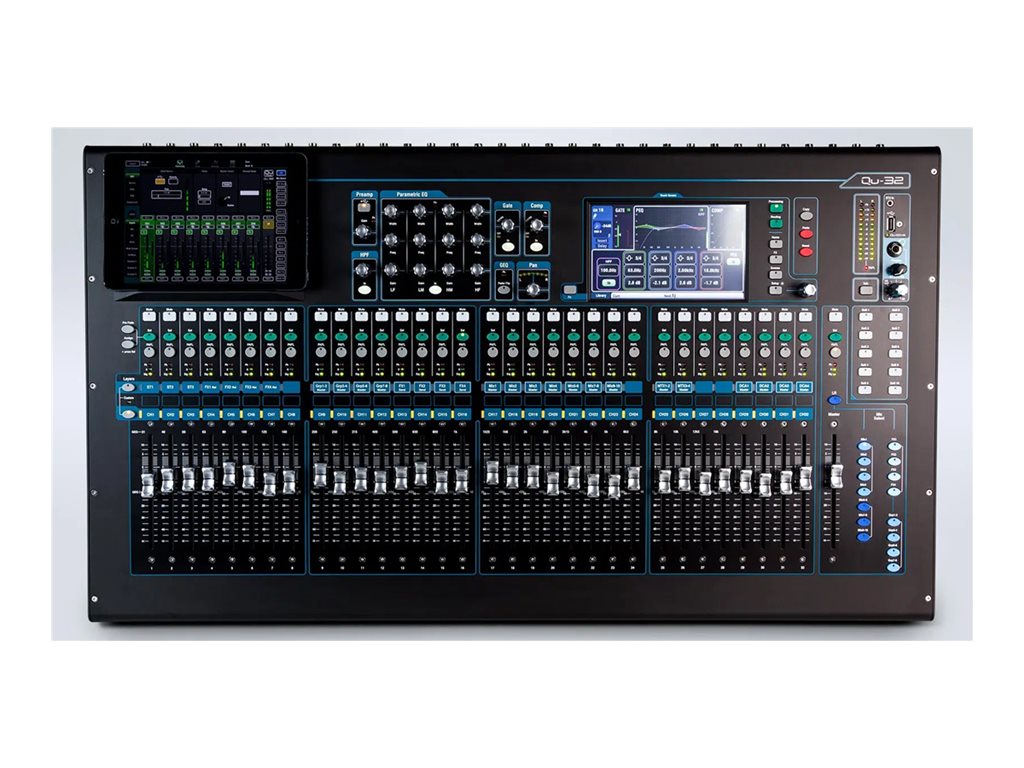

| Product Description | Allen & Heath QU 32 digital mixer - 32-channel |
| Type | Digital mixer with 4x DSP FX - 32-channel - rack-mountable |
| Bus Type | USB, Ethernet |
| Computer Interface In | 32 |
| Computer Interface Out | 32 |
| Frequency Response | 20 Hz - 20 kHz |
| Headphones Output | Yes |
| Meter Indicator | 2 x LED level meters (12 segments) |
| Mic Channels | 32 mono |
| Line Channels | 32 mono / 3 stereo |
| Fader Size | 100 mm |
| Dimensions (WxDxH) | 33.4 in - 19.5 in - 7.3 in |
| Weight | 44.09 lbs |
| General | |
| Type | Digital mixer with 4x DSP FX |
| Bus Type | USB, Ethernet |
| Computer Interface In | 32 |
| Computer Interface Out | 32 |
| Max Sample Rate | 48 kHz |
| Max Bit Depth | 24-bit |
| Power | |
| Frequency | 50/60 Hz |
| Power Consumption | 150 Watt |
| Connections | |

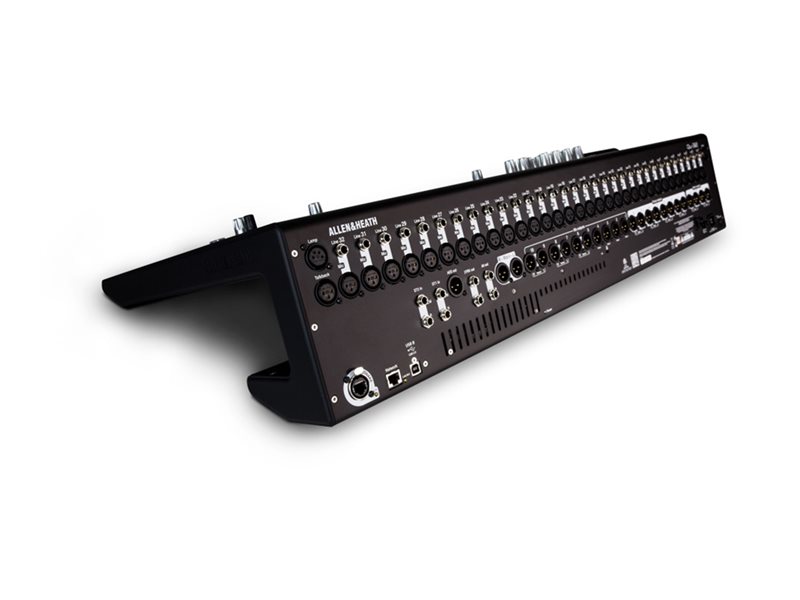

| Connector Type | 32 x audio line-in (phone 6.3 mm) - rear ¦ 32 x microphone (XLR) - rear ¦ 2 x audio line-in (phone 6.3 mm x 2) - rear ¦ 2 x audio line-out (phone 6.3 mm x 2) - rear ¦ 9 x balanced audio output (XLR x 2) - rear ¦ 4 x balanced audio output (XLR) - rear ¦ 1 x AES/EBU output (XLR) - rear ¦ 1 x main channel output (XLR x 2) - rear ¦ 1 x USB (4 pin USB Type B) - rear ¦ 1 x network (RJ-45) - rear ¦ 1 x dSNAKE (RJ-45 etherCON) - rear ¦ 1 x audio line-in (mini-phone stereo 3.5 mm) - top ¦ 1 x USB (4 pin USB Type A) - top ¦ 1 x headphones (phone stereo 6.3 mm) - top ¦ 1 x talkback microphone (XLR) - rear ¦ 1 x lamp output (XLR) - rear |
| Dimensions & Weight | |
| Width | 33.4 in |
| Depth | 19.5 in |
| Height | 7.3 in |
| Weight | 44.09 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 39.4 in |
| Shipping Depth | 26.8 in |
| Shipping Height | 13.8 in |
| Shipping Weight | 52.91 lbs |
| Mixer | |
| Rack Mount | Rack-mountable |
| Channels Qty (total) | 32-channel |
| Frequency Response | 20 Hz - 20 kHz |
| Control Types | Knobs, faders, keys |
| Headphones Output | Yes |
| Meter Indicator | 2 x LED level meters (12 segments) |
| Features | Headphone output volume control, external lamp 4-pin XLR connector, built-in channel compressors, USB flash drive recording, Ethernet interface, Automatic Mic Mixer (AMM), built-in signal generator, built-in 7-inch color touch screen |
| Channel Description | |
| Mic Channels | 32 mono |
| Mic Channels Connector | XLR |
| Line Channels | 32 mono / 3 stereo |
| Line Channels Connector | Mini-phone stereo 3.5 mm, phone 6.3 mm, phone 6.3 mm x 2 |
| EQ Band Qty | 4 |
| Fader Size | 100 mm |
| Effect Processor | |
| Effects Type | Flanger, Gated Reverb, Phaser, Delay, Symphonic, Reverb |
