Network amplifier
| Main Specifications | |
|---|---|

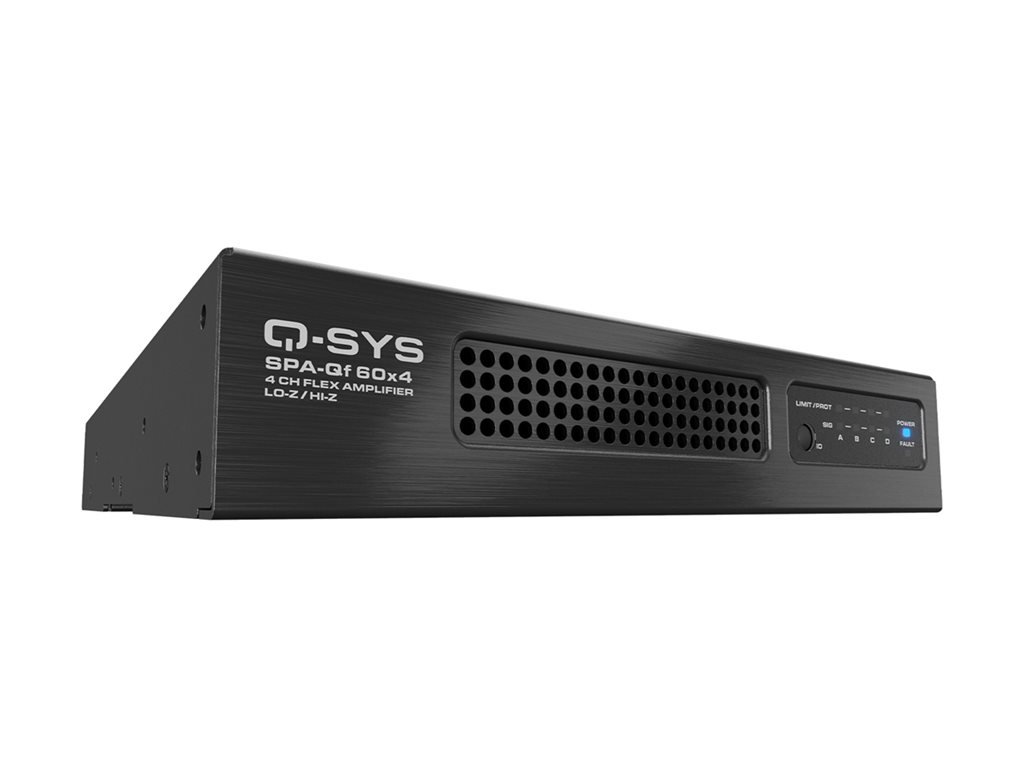

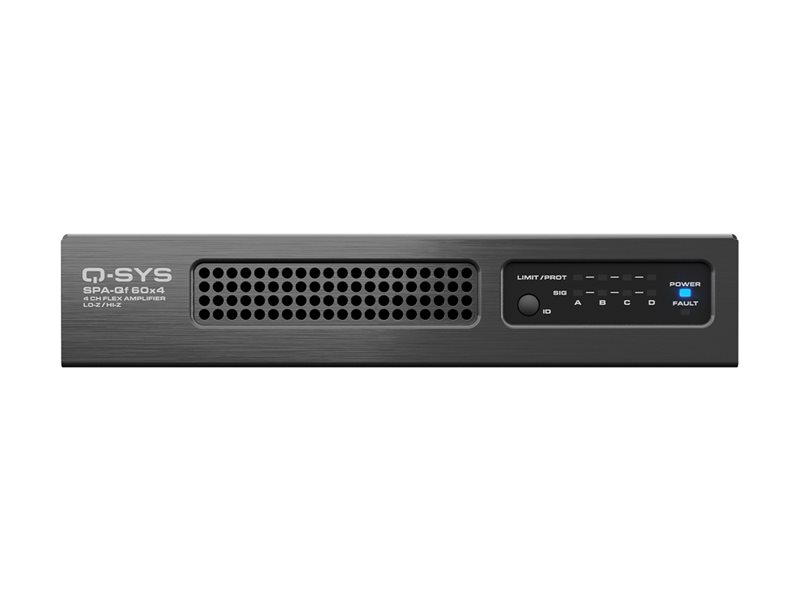

| Product Description | QSC SPA-QF 60X4 - network amplifier |
| Product Type | Network amplifier |
| Audio Channels | Stereo |
| Audio Specifications | Amplifier - 20 - 20000 Hz - 100 dB - 109 dB - <0.005% |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 8.7 in x 11.3 in x 1.7 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Network amplifier |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years |
| Miscellaneous | |
| Included Accessories | Rack mounting kit, rack mount ears, mounting kit |
| Power | |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Connections | |
| Connectors | 2 x speakers output (Euroblock 4-pole) - rear ¦ GPIO (Euroblock 6-pole) - rear ¦ Balanced audio input (Euroblock 3-pole) - rear ¦ Gigabit LAN (RJ-45) - rear |
| Dimensions & Weight | |
| Width | 8.7 in |
| Depth | 11.3 in |
| Height | 1.7 in |
| Audio System | |
| Audio Channels | Stereo |
| Functions | Amplifier |
| Audio Specifications | Amplifier - Response Bandwidth - 20 - 20000 Hz - SNR - 100 dB - Dynamic Range - 109 dB - THD - <0.005% |
| Amplifier Output Details | 60 Watt - 8 Ohm - 4 channels (main) ¦ 60 Watt - 4 Ohm - 4 channels (main) ¦ 120 Watt - 8 Ohm (bridged) ¦ 120 Watt - 4 Ohm (bridged) ¦ 120 Watt (70/100V) |
| Maximum Sampling Rate Supported | 48 kHz |
| Features | Thermal protection, short circuit protection, over current protection, over voltage protection, gain control, Digital Amplifier, wall mountable, bridged output capability, rack mountable, 70V/100V or 4 Ohm operation, convection cooled |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 13.5 in |
| Depth (Shipping) | 15 in |
| Height (Shipping) | 3.5 in |
| Weight (Shipping) | 6.39 lbs |
