Intel Core i7 - 12850HX / up to 4.8 GHz - vPro Enterprise - Win 11 Pro - RTX A1000 - 64 GB RAM - 512 GB SSD NVMe, Class 40 - 17.3" 1920 x 1080 (Full HD) - Gigabit Ethernet - Wi-Fi 6E - 5G NR - aluminum titan gray - BTS - with 3 Years Basic Onsite Service after Remote Diagnosis with Hardware-Only Support
| Main Specifications | |
|---|---|

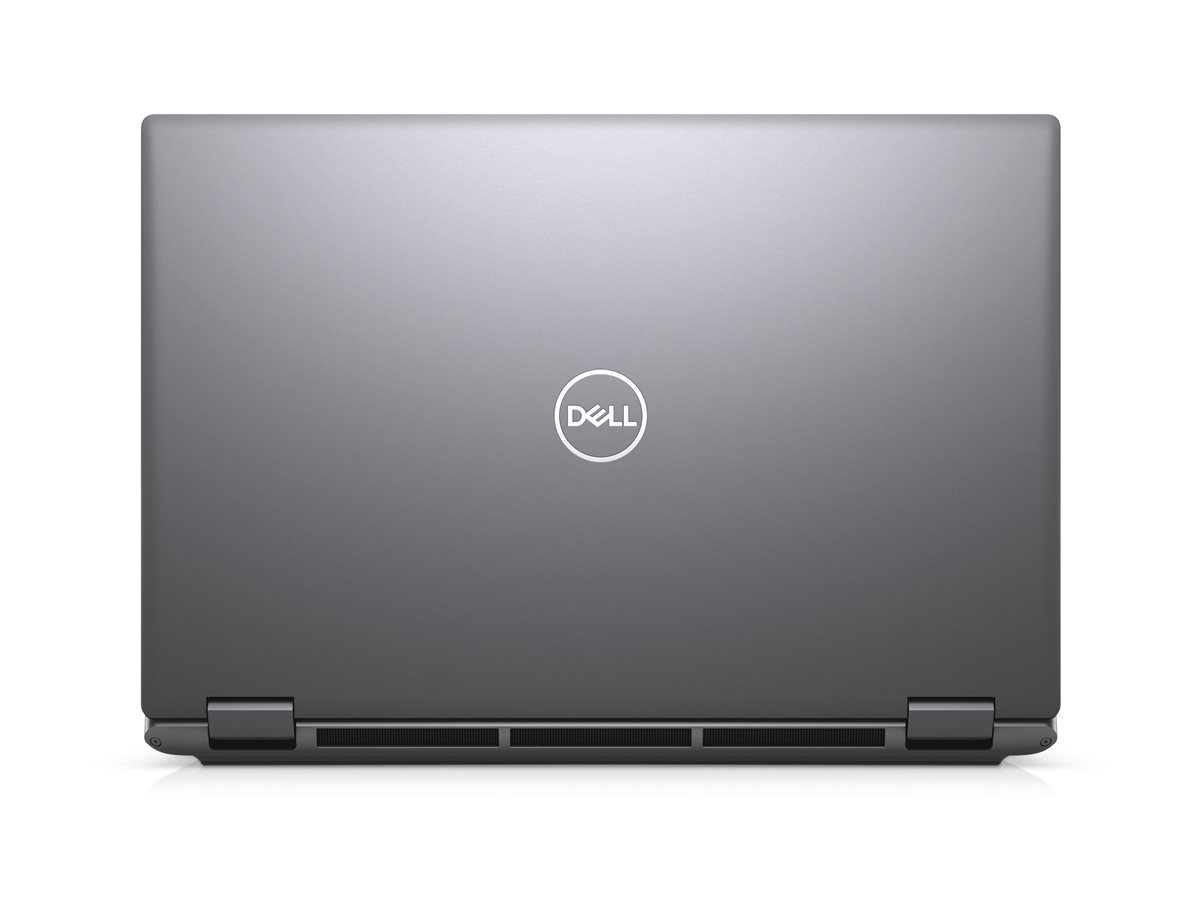

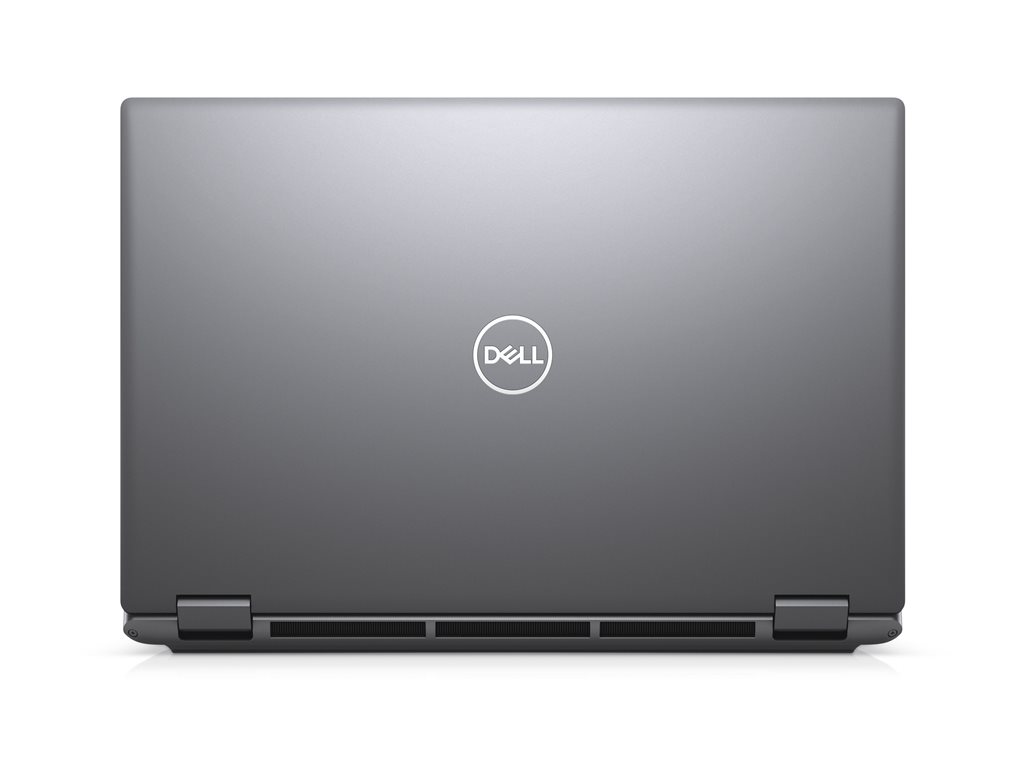

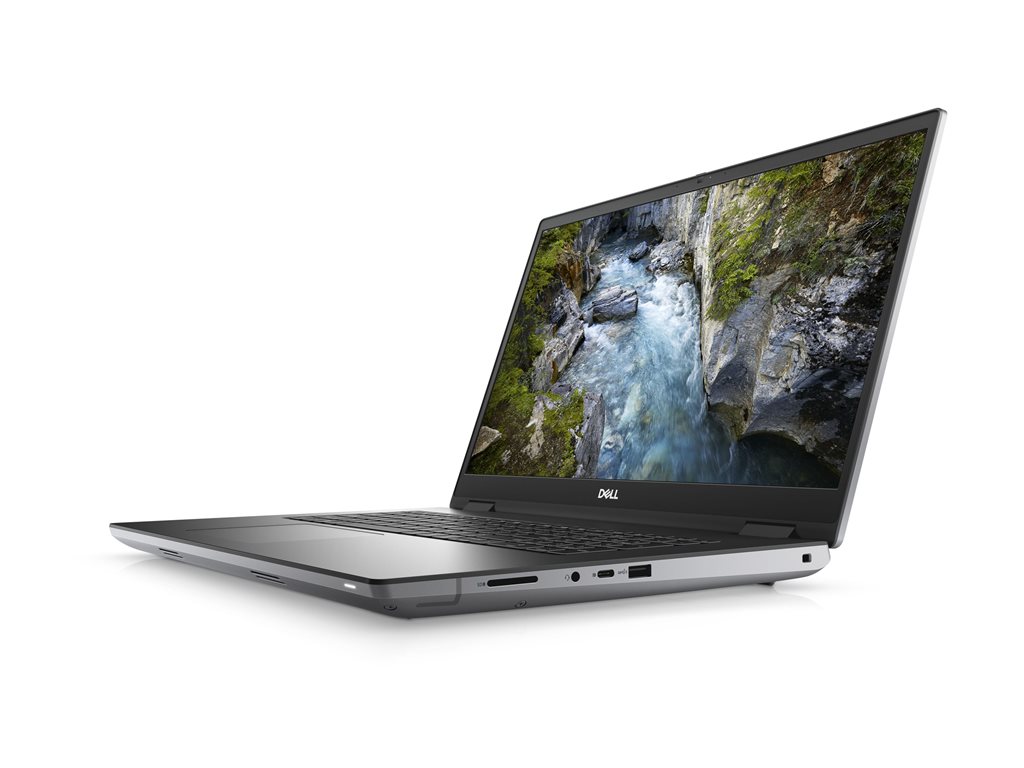

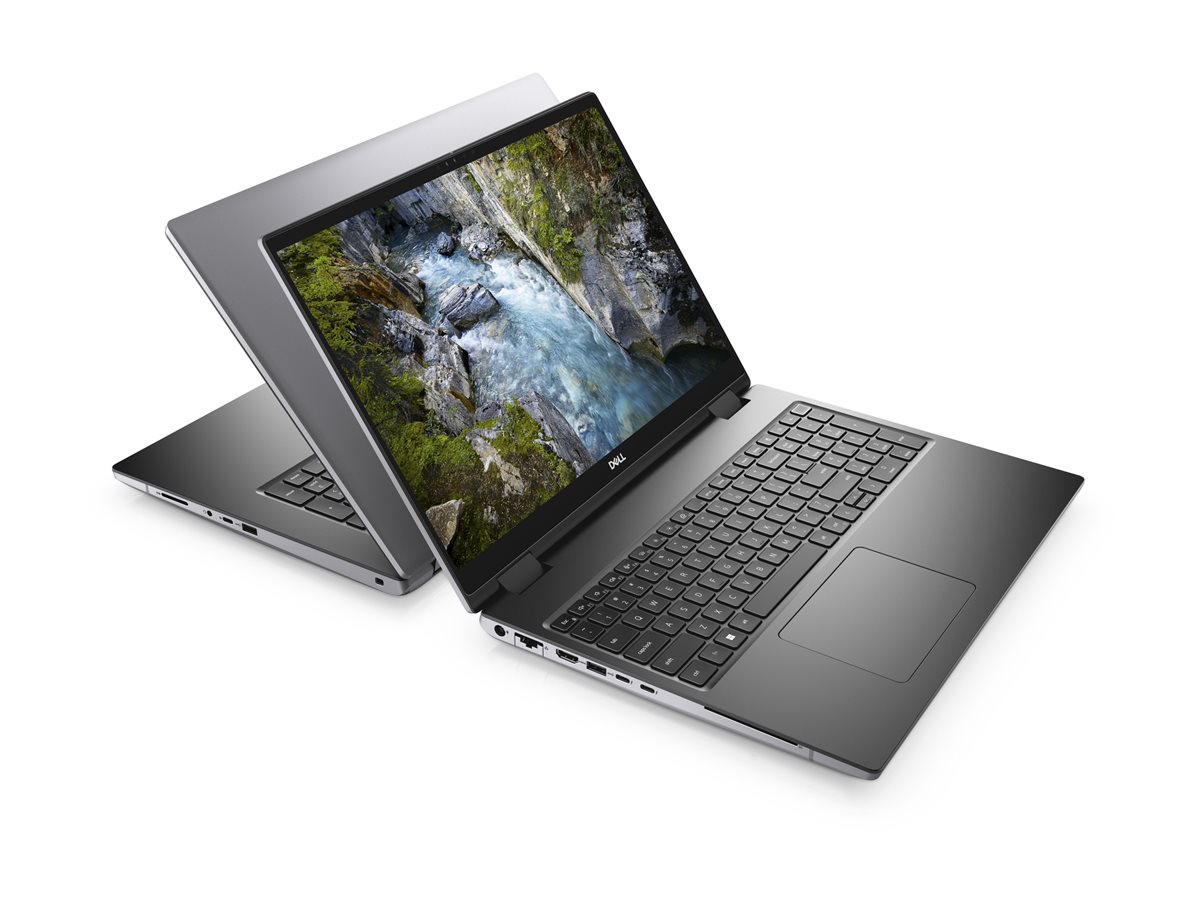

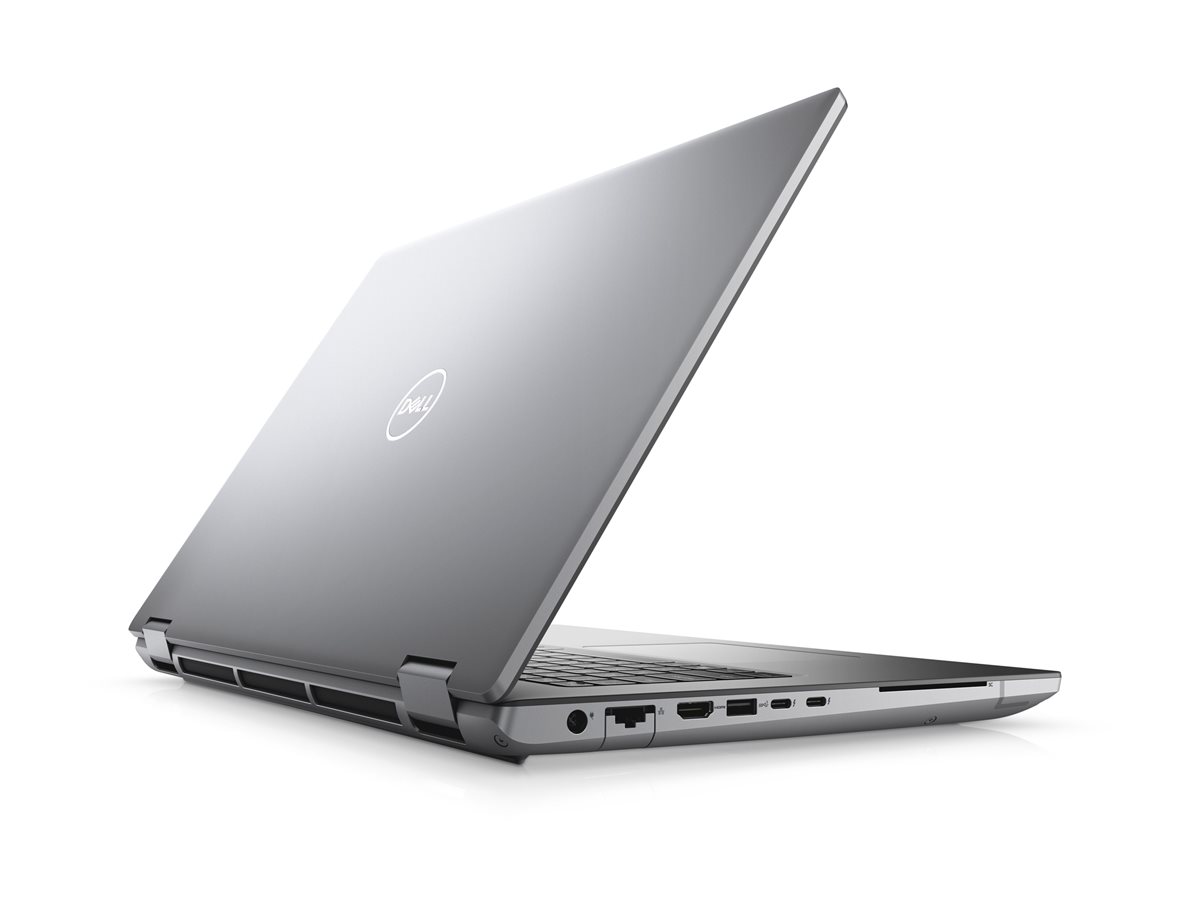

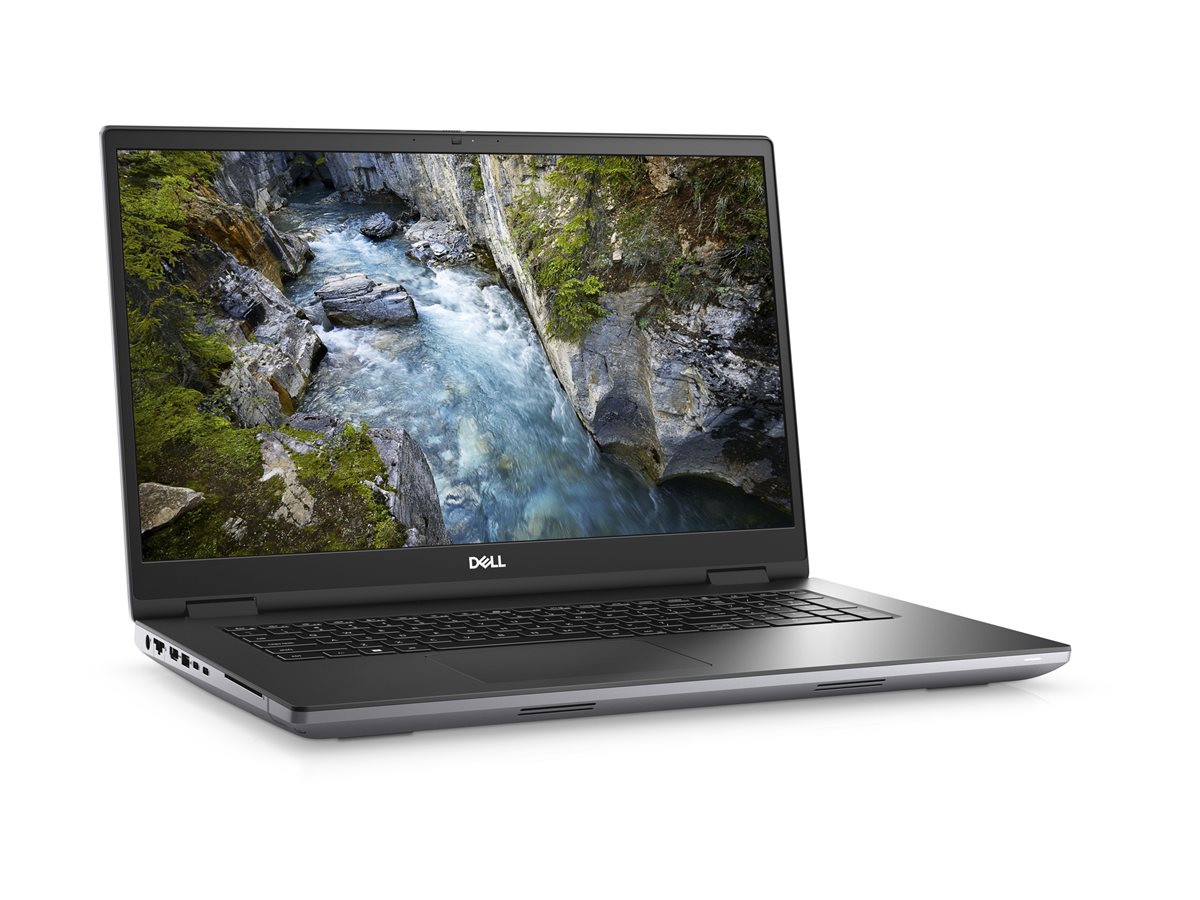

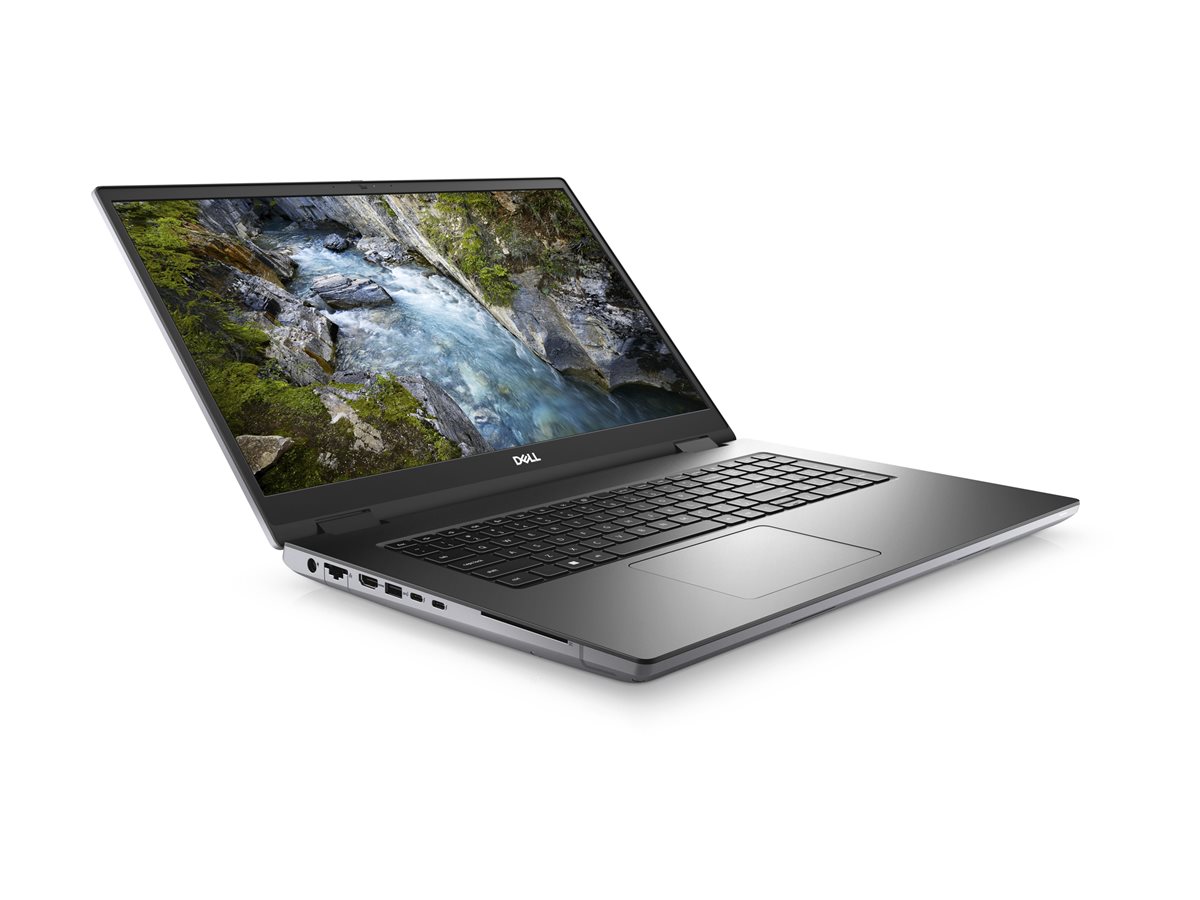

| Product Description | Dell Precision 7770 - 17.3" - Intel Core i7 - 12850HX - vPro Enterprise - 64 GB RAM - 512 GB SSD - 5G NR |
| Product Type | Mobile workstation |
| Operating System | Win 11 Pro - English / French / Spanish |
| Platform Technology | Intel vPro Enterprise |
| Processor | Intel Core i7 (12th Gen) - 12850HX / 2.1 GHz, up to 4.8 GHz / 25 MB Cache |
| Memory | 64 GB DDR5 (1 x 64 GB) |
| Storage | 512 GB SSD - NVMe, Class 40 |
| Display | 17.3" 1920 x 1080 / Full HD @ 60 Hz - 127 ppi |
| Graphics | NVIDIA RTX A1000 |
| Video Memory | 4 GB GDDR6 SDRAM |
| Input Device | Keyboard, touchpad |
| Keyboard Backlight | Yes |
| Numeric Keypad | Yes |
| Integrated Webcam | Yes |
| Networking | Bluetooth, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Gigabit Ethernet |
| Wireless Broadband (WWAN) | 5G 5G NR |
| Service Provider | Service not included |
| Battery | 6-cell |
| Features | Accelerometer, ambient light sensor, hall sensor |
| Security | Discrete Trusted Platform Module (TPM 2.0) Security Chip, smart card reader |

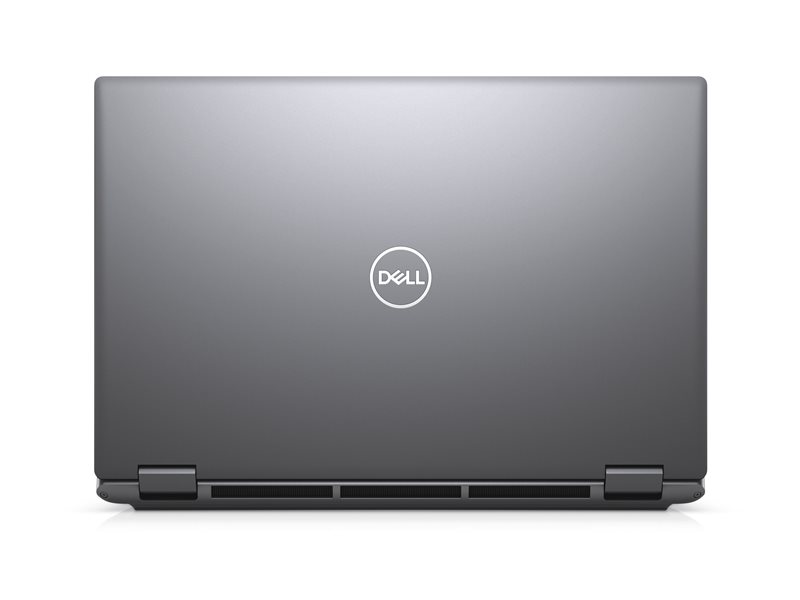

| Color | Aluminum titan gray |
| Dimensions (WxDxH) | 15.7 in x 10.4 in x 1.1 in |
| Weight | 6.66 lbs |
| Pricing Type | Build To Stock (BTS) |
| Environmental Standards | ENERGY STAR Qualified EPEAT Gold |
| Carbon Footprint | 489 kg carbon emissions |
| Bundled Services | 3 Years Basic Onsite Service after Remote Diagnosis with Hardware-Only Support |
| General | |
| Product Type | Mobile workstation |
| Operating System | Windows 11 Pro - English / French / Spanish |
| Memory | |
| RAM | 64 GB (1 x 64 GB) |
| Max RAM Supported | 128 GB |
| Technology | DDR5 SDRAM - non-ECC |
| Speed | 4800 MHz |
| Rated Speed | 4800 MHz |
| Form Factor | CAMM |
| Manufacturer Warranty | |
| Bundled Services | 3 Years Basic Onsite Service after Remote Diagnosis with Hardware-Only Support |
| Miscellaneous | |
| Color | Aluminum titan gray |
| Integrated Options | Accelerometer, ambient light sensor, hall sensor |
| Security | Discrete Trusted Platform Module (TPM 2.0) Security Chip, smart card reader |
| Features | ExpressCharge |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Noble Wedge security slot |
| Included Accessories | Power adapter |
| Compliant Standards | FIPS 140-2 |
| Pricing Type | Build To Stock (BTS) |
| Storage | |
| Main Storage | 512 GB SSD M.2 2280 PCIe 4.0 x4 - NVM Express (NVMe), Class 40 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Shock Tolerance (operating) | 110 g @ 2 ms half-sine pulse |
| Shock Tolerance (non-operating) | 160 g @ 2 ms half-sine pulse |
| Vibration Tolerance (operating) | 0.66 g @ RMS (random) |
| Vibration Tolerance (non-operating) | 1.3 g @ RMS (random) |
| Software | |
| Software Included | Dell Applications for Windows 11, Microsoft Office (30 days trial, excludes office license) |
| Battery | |
| Technology | 6-cell lithium ion |
| Weight | 410 g |
| Capacity | 93 Wh |
| Display | |

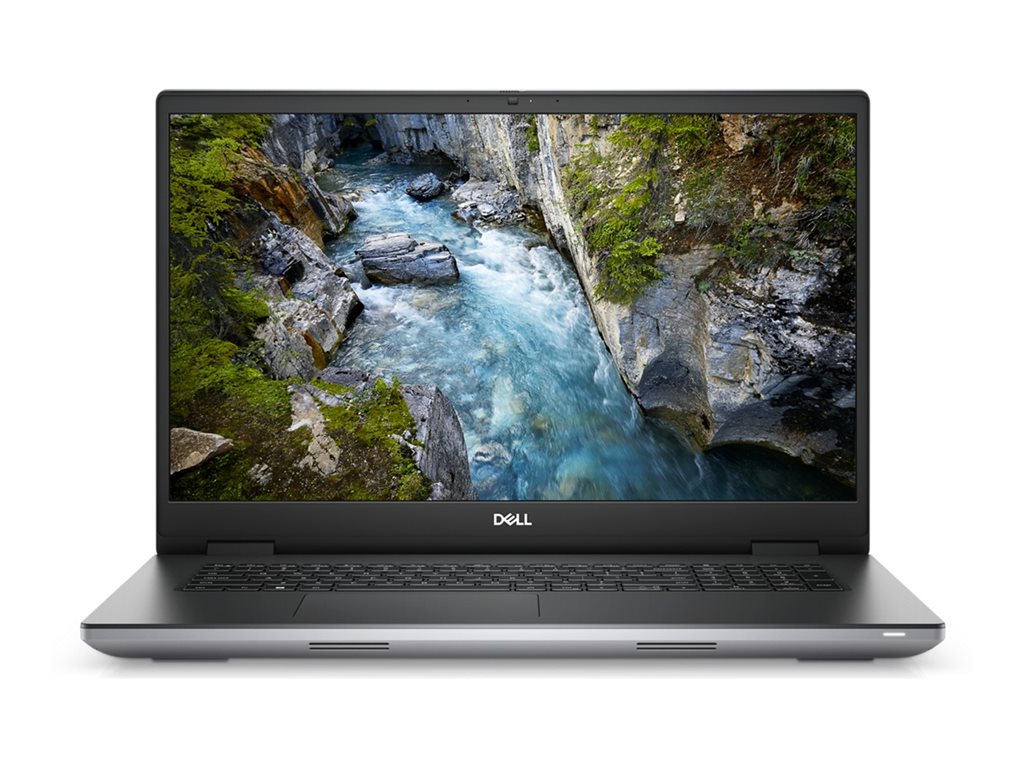

| Type | 17.3" |
| Resolution | 1920 x 1080 (Full HD) |
| V-Sync Rate at Max Res. | 60 Hz |
| Widescreen | Yes |
| Pixel Density (ppi) | 127 |
| Image Brightness | 500 cd/m² |
| Horizontal Viewing Angle | +80 / -80 |
| Vertical Viewing Angle | +80 / -80 |
| Color Gamut | 99% DCI-P3 |
| Features | Anti-glare, Wide Viewing Angle, 35 ms response rate, 0.198 mm pixel pitch |
| Communications | |
| Wireless | Bluetooth, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Wireless Controller | Intel Wi-Fi 6E AX 211 |
| Network Interface | Gigabit Ethernet |
| Ethernet Controller | Intel I219-LM |
| Features | Dual stream (2x2) |
| Dimensions & Weight | |
| Dimensions (WxDxH) | 15.7 in x 10.4 in x 1.1 in |
| Weight | 6.66 lbs |
| Processor / Chipset | |
| CPU | Intel Core i7 (12th Gen) 12850HX / 2.1 GHz |
| Max Turbo Speed | 4.8 GHz |
| Number of Cores | 16-core |
| Cache | 25 MB |
| Platform Technology | Intel vPro Enterprise |
| Audio & Video | |
| Graphics Processor | NVIDIA RTX A1000 |
| Video Memory | 4 GB GDDR6 SDRAM |
| Camera | Yes - Full HD |
| Video Resolutions | 1920 x 1080 |
| Frame Rate | 30 frames per second |
| Camera Features | IR camera, 74.9 degrees, 70 degrees (IR camera) |
| Sound | Two tweeters, two woofers, dual array microphone |
| Codec | Realtek ALC711-VD |
| Input | |

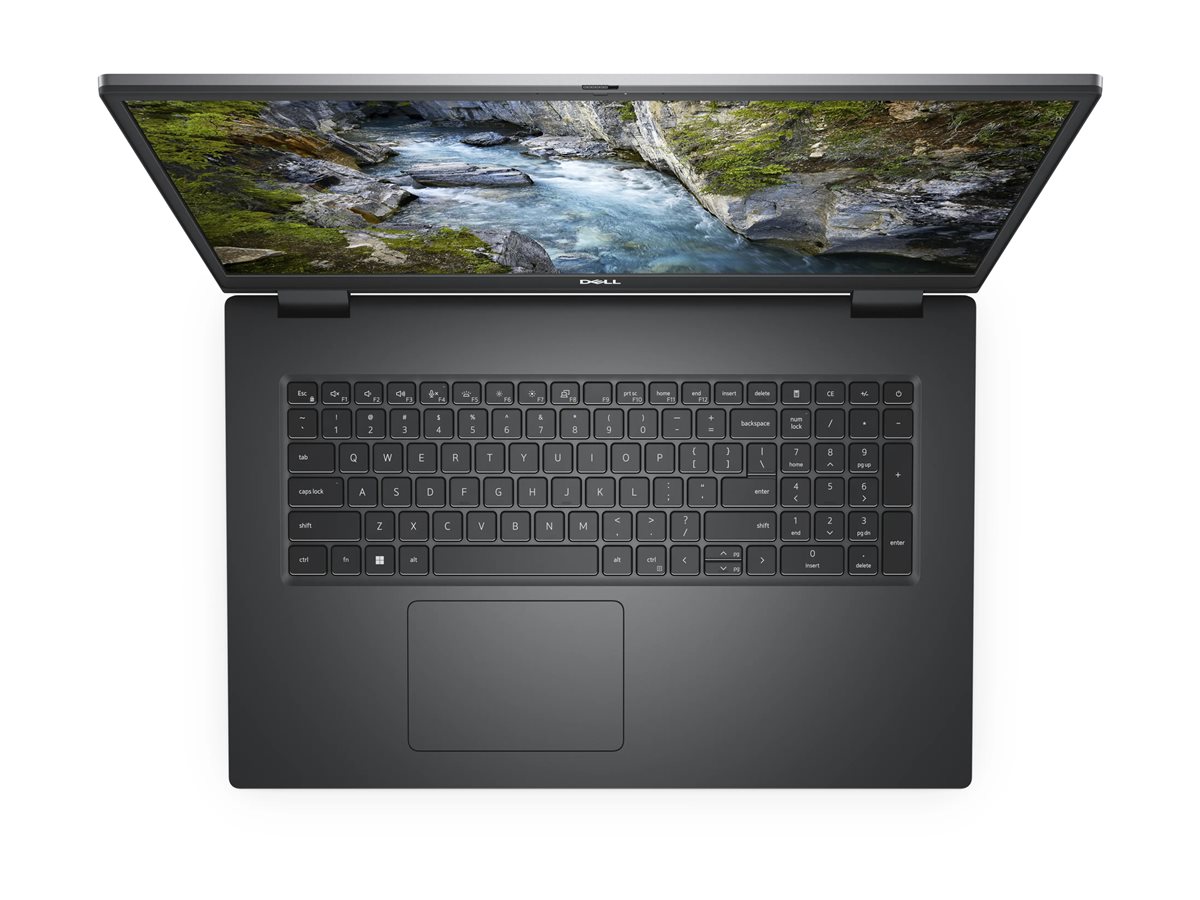

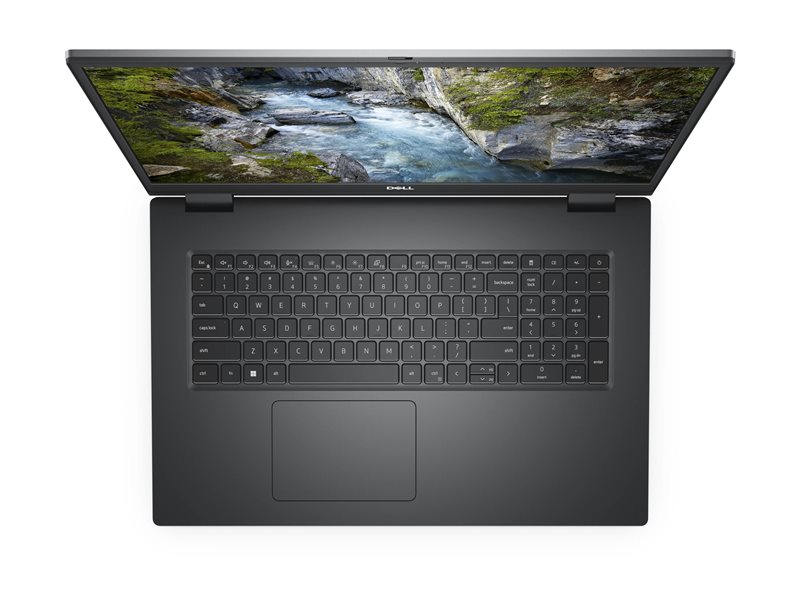

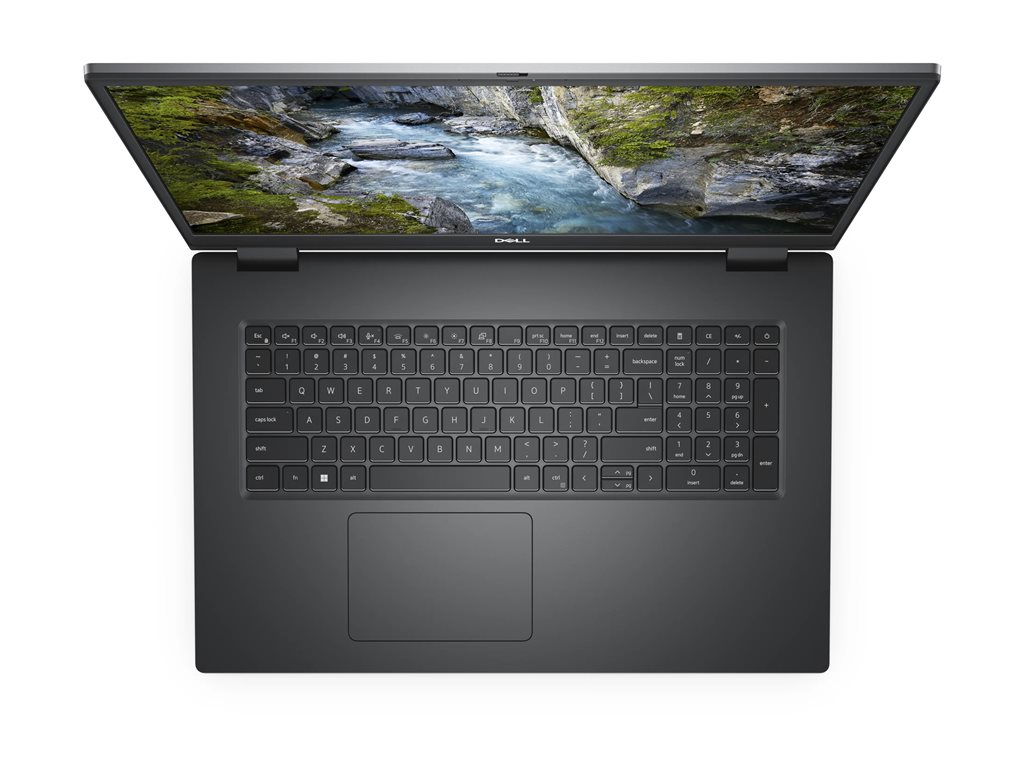

| Type | Keyboard, touchpad |
| Keyboard Backlight | Yes |
| Numeric Keypad | Yes |
| Features | Precision touchpad, 99-key |
| AC Adapter | |
| Input | AC 100-240 V (50/60 Hz) |
| Output | 240 Watt, 19.5 V, 12.3 A |
| Connections & Expansion | |
| Slots | 4 x M.2 Card (3 free) |

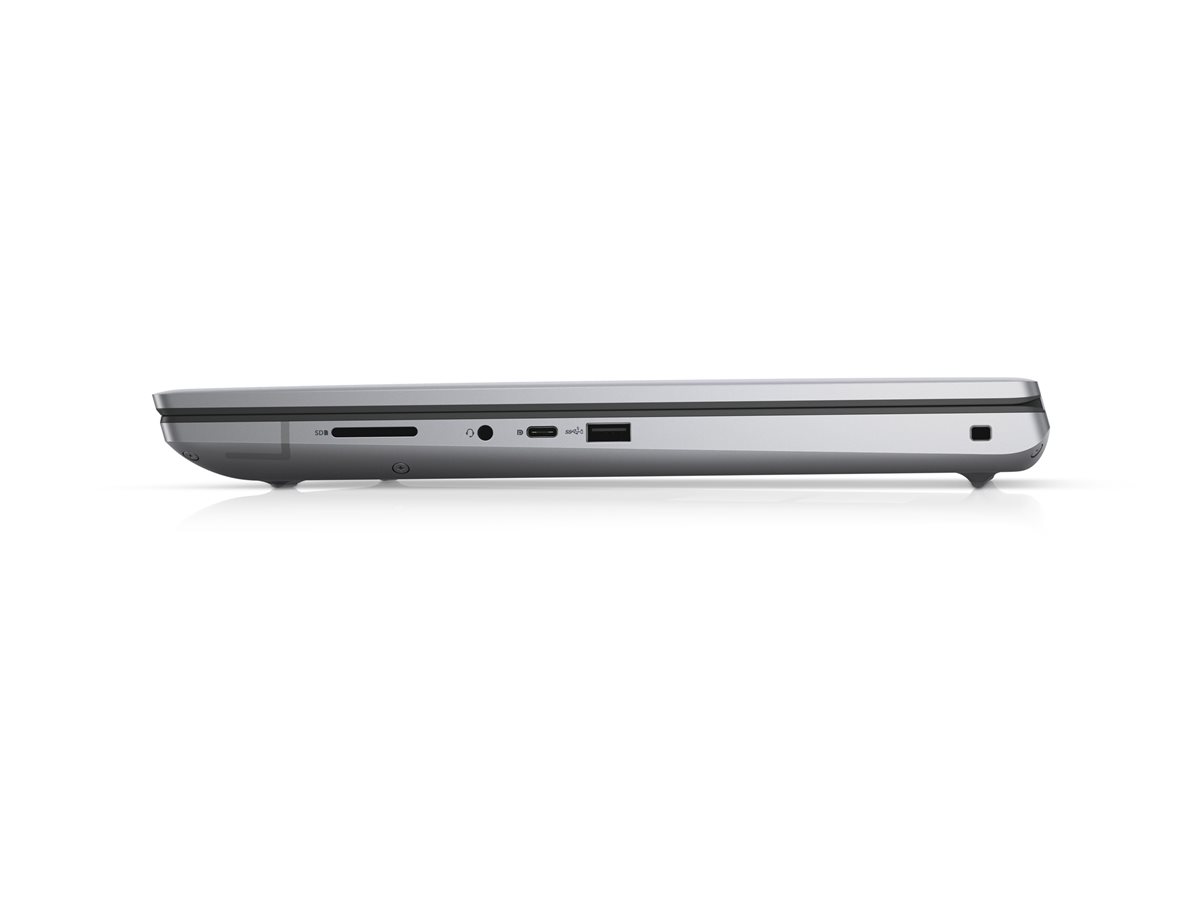

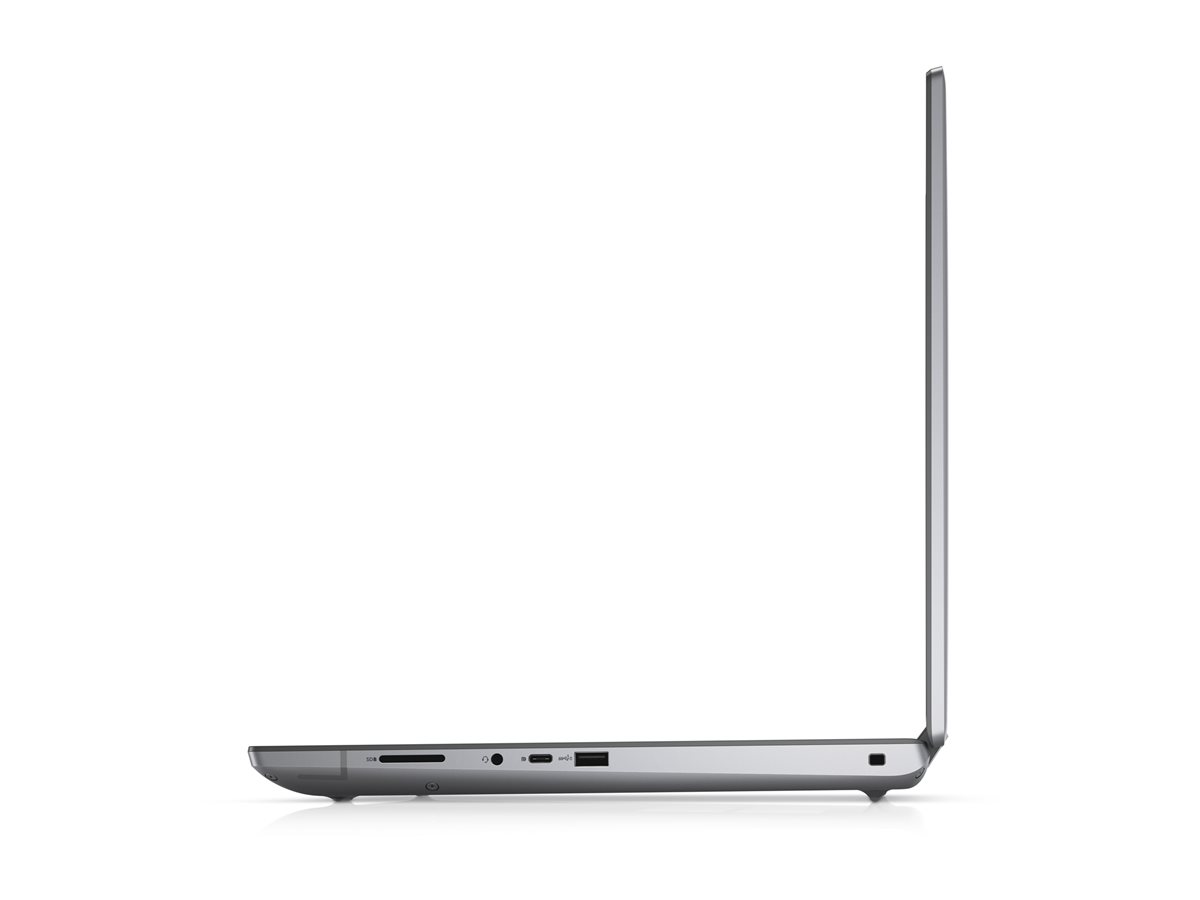

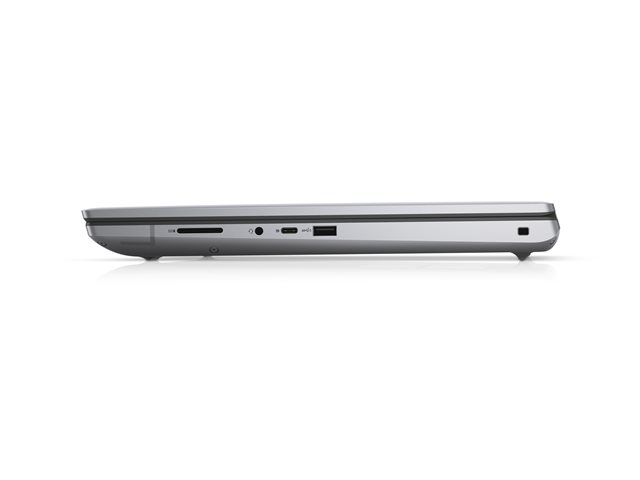

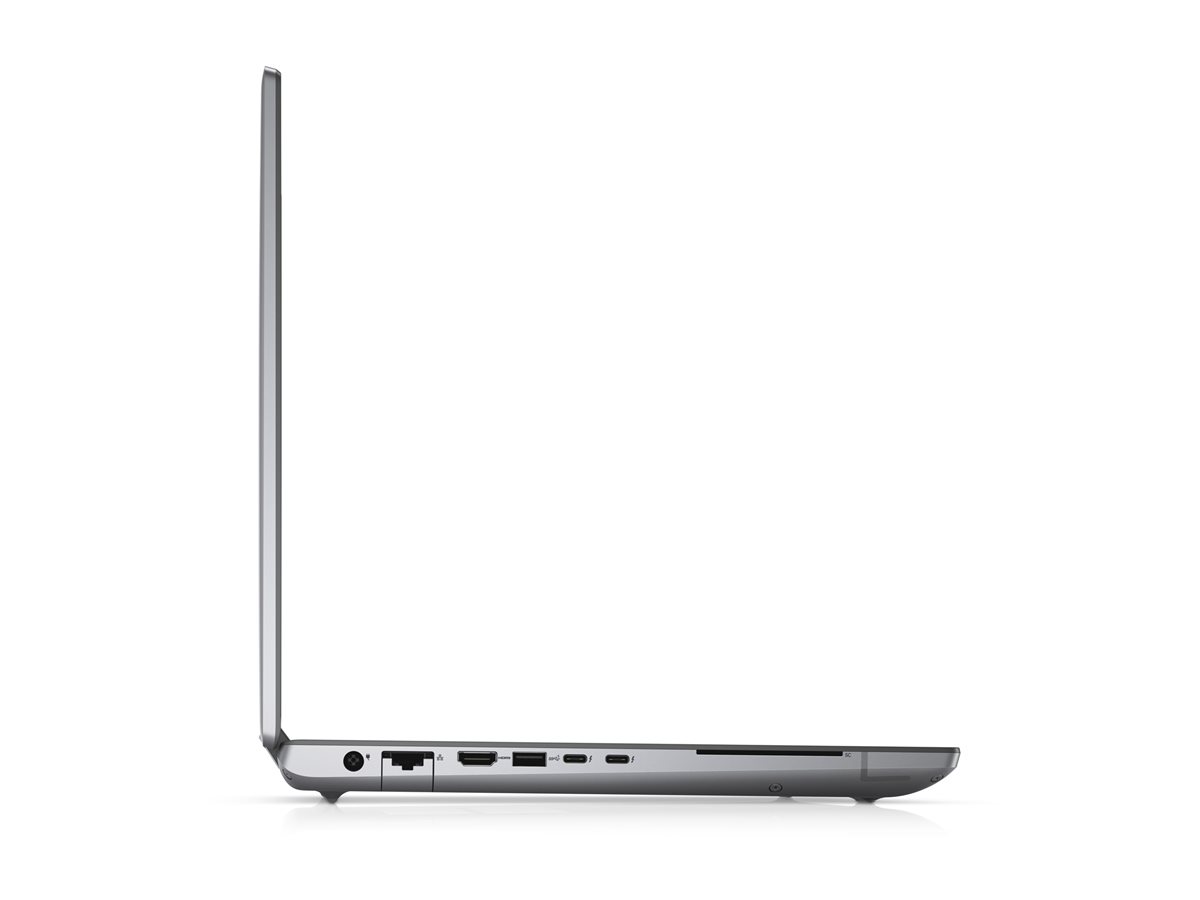

| Interfaces Details | HDMI ¦ 2 x USB4 (supports Thunderbolt 4, DisplayPort 1.4 Alt Mode) ¦ USB-C 3.2 Gen 2 (supports DisplayPort 1.4 Alt Mode) ¦ USB 3.2 Gen 1 (PowerShare) ¦ USB 3.2 Gen 1 ¦ LAN (RJ-45) ¦ Headphone/microphone combo jack |
| Memory Card Reader | Yes (SD Card, SDHC Card, SDXC Card) |
| Wireless Broadband (WWAN) | |
| Generation | 5G |
| Technology | 5G NR |
| Controller | Qualcomm Snapdragon X55 |
| Service Provider | Service not included |
| Sustainability Information | |
| TCO Certified | - |
| EPEAT Compliant | EPEAT Gold |
| ENERGY STAR Certified | Yes |
| Carbon Footprint | 489 kg carbon emissions |
| PAIA Version | 1.3.1 |
